Coolant Recovery Reservoir Vent Hose Replacement (LEA) Engine Cooling Reservoir Tank

.,

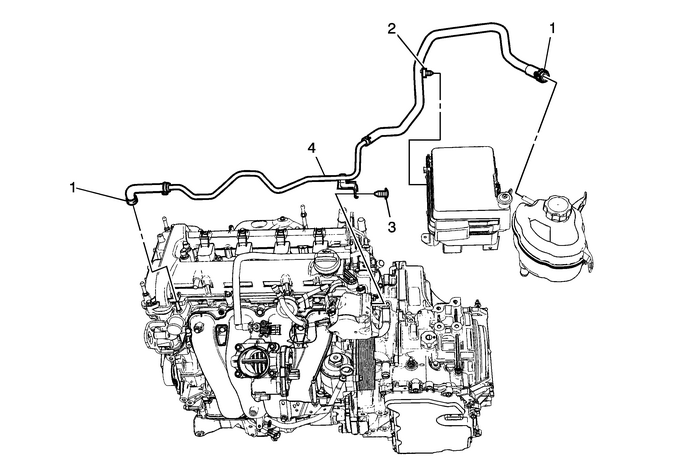

Coolant Recovery Reservoir Vent Hose Replacement

Callout

Component Name

Preliminary ProceduresDrain the coolant. Refer toCooling System Draining and Filling.Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement

1

Coolant Recovery Reservoir Vent Hose Clamps(Qty-2)

Procedure

UsingJ 38185Hose Clamp Pliersreposition the coolant recovery reservoir venthose.

Special Tools

J 38185Hose Clamp Pliers

2

Coolant Recovery Reservoir Vent Hose Retainer

3

Coolant Recovery Reservoir Vent Hose Retainer

4

Coolant Recovery Reservoir Vent Hose
