Coolant Heater Replacement (LFX) Engine Cooling

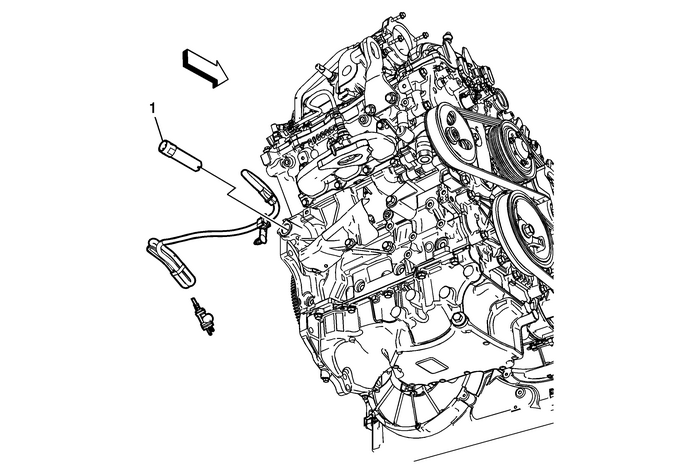

Coolant Heater Replacement

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.

Coolant Heater

Tip:Be careful not to score inner surface of the engine blockwhen removing coolant heater.
