Chevrolet Equinox Service Manual: Coolant Heater Replacement (LEA) Engine Cooling

Chevrolet Equinox Service Manual / Powertrain / Engine / Coolant Heater Replacement (LEA) Engine Cooling

Removal ProcedureIf equipped with AWD, remove the exhaust manifold. Refer toExhaust Manifold Replacement.

Coolant Heater Replacement (LEA) Engine Cooling

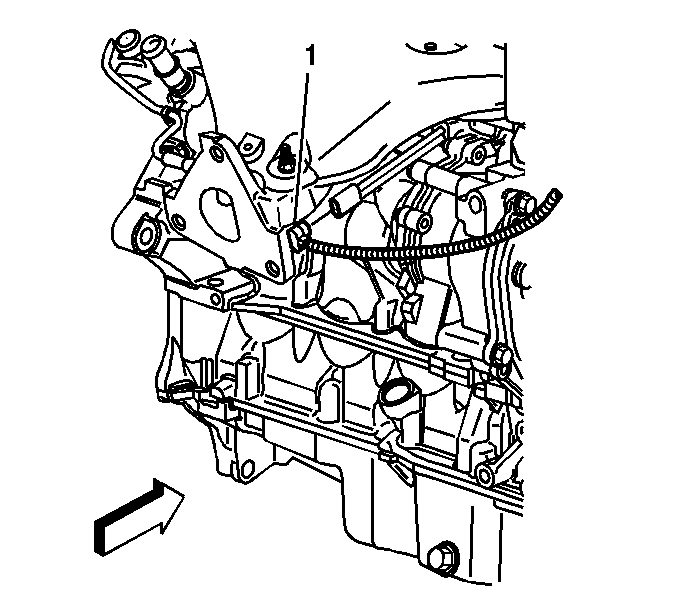

Disconnect the coolant heater cord-(1).

Coolant Heater Replacement (LEA) Engine Cooling

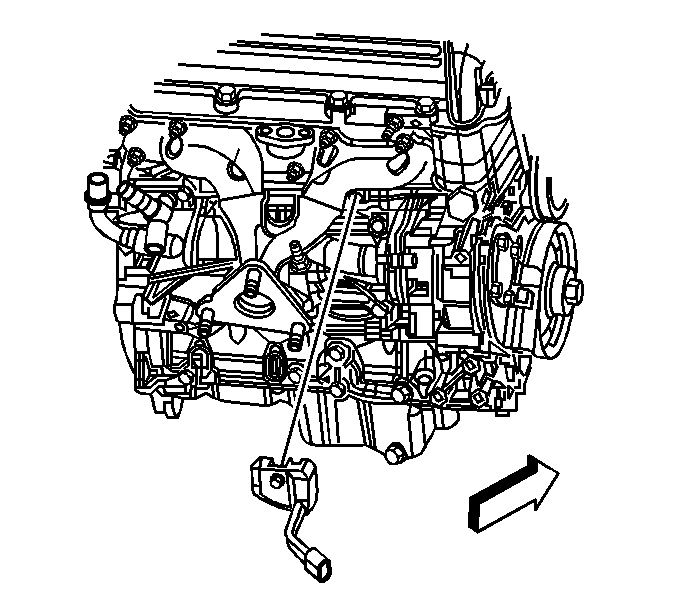

Remove the coolant heater bolt.Remove the coolant heater.Installation Procedure

Coolant Heater Replacement (LEA) Engine Cooling

Install the coolant heater.

Caution:Refer toFastener Caution.

Install the coolant heater bolt and tighten to 10-Y (89-lb-in).

Coolant Heater Replacement (LEA) Engine Cooling

Connect the coolant heater cord-(1).If equipped with AWD, install the exhaust manifold. Refer toExhaust Manifold Replacement.
