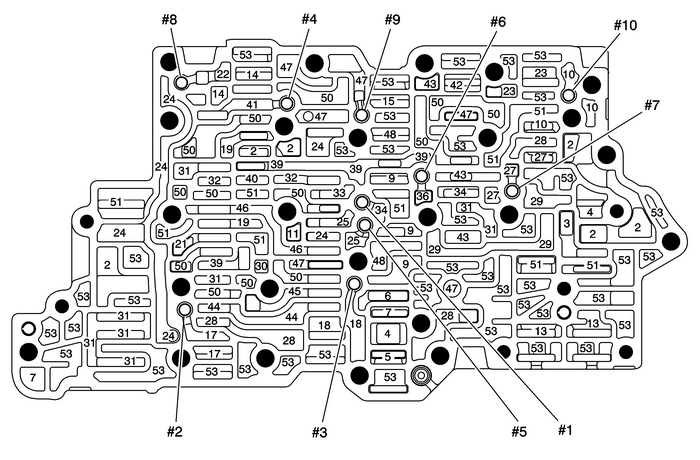

Control Valve Upper Body Assembly– Upper Body Spacer Plate Side
| (2) | Line |
| (3) | Decrease |
| (4) | Converter Feed |
| (5) | TCC Release |
| (6) | TCC Apply |
| (7) | Cooler Feed |
| (9) | Regulated Apply |
| (10) | Compensator Feed |
| (11) | Actuator Feed Limit |
| (13) | PCS Line |
| (14) | PCS R1/456 Clutch |
| (15) | Solenoid 1 |
| (17) | CSV2 Enable |
| (18) | CSV3 Enable |
| (19) | R1/456 Clutch Feed |
| (21) | R1 Supply |
| (22) | R1 |
| (23) | PCS 35 Reverse Clutch |
| (24) | Reverse |
| (25) | 35 Reverse Clutch Feed |
| (27) | 35 Reverse Feed |
| (28) | 35 Reverse Clutch |
| (29) | 35 Reverse Clutch Feedback |
| (30) | PCS 1234 Clutch |
| (31) | Drive |
| (32) | Drive Brake |
| (33) | Drive B |
| (34) | 26 Clutch/1234 Clutch Feed |
| (36) | 1234 Clutch Feed |
| (39) | Drive 1–6 |
| (40) | Latch Feed |
| (41) | CSV2 Latch |
| (42) | PCS 26 Clutch |
| (43) | 26 Clutch |
| (44) | 1234 Clutch Default Feed |
| (45) | 1234 Clutch Default |
| (46) | 456 Clutch Feed |
| (47) | 456 Clutch |
| (48) | PCS TCC |
| (50) | Exhaust Backfill |
| (51) | Exhaust |
| (53) | Void |
