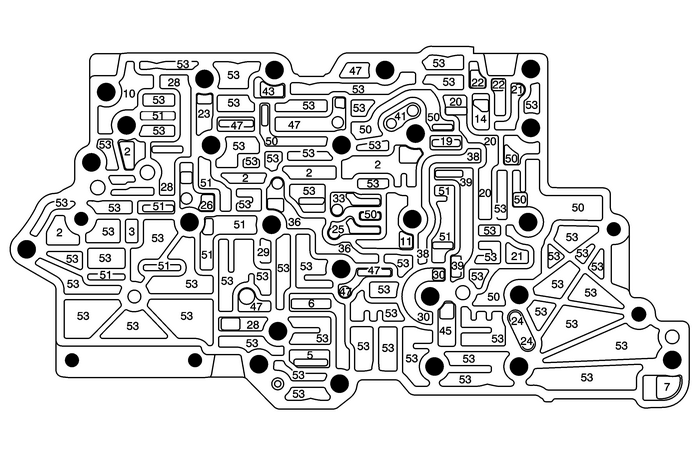

Control Valve Upper Body Assembly– Lower Body Spacer Plate Side

Control Valve Upper Body Assembly - Lower Body Spacer Plate Side Automatic Transmission Unit

(2)	Line
(3)	Decrease
(5)	TCC Release
(6)	TCC Apply
(7)	Cooler Feed
(10)	Compensator Feed
(11)	Actuator Feed Limit
(14)	PCS R1/456 Clutch
(19)	R1/456 Clutch Feed
(20)	R1/456 Feedback
(21)	R1 Supply
(22)	R1
(23)	PCS 35 Reverse Clutch
(24)	Reverse
(25)	35 Reverse Clutch Feed
(26)	35 Reverse Supply
(28)	35 Reverse Clutch
(29)	35 Reverse Clutch Feedback
(30)	PCS 1234 Clutch
(33)	Drive B
(36)	1234 Clutch Feed
(38)	1234 Clutch Feedback
(39)	Drive 1–6
(41)	CSV2 Latch
(43)	26 Clutch
(45)	1234 Clutch Default
(47)	456 Clutch
(50)	Exhaust Backfill
(51)	Exhaust
(53)	Void
