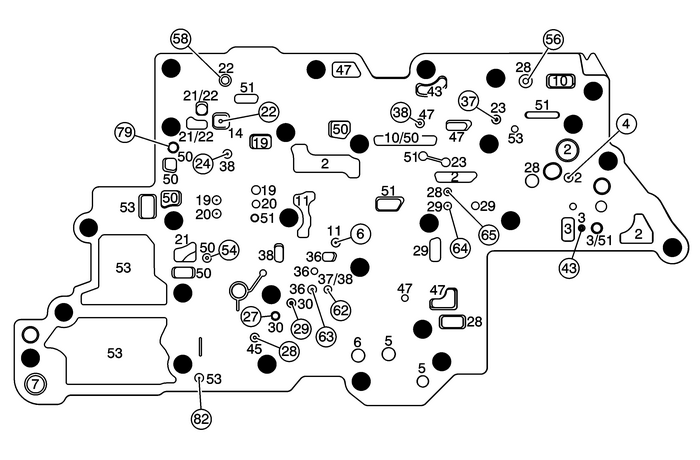

Control Valve Lower Body Spacer Plate Assembly
| (2) | Line |
| (3) | Decrease |
| (5) | TCC Release |
| (6) | TCC Apply |
| (10) | Compensator Feed |
| (11) | Actuator Feed Limit |
| (14) | PCS R1/456 Clutch |
| (19) | R1/456 Clutch Feed |
| (20) | R1 Feedback |
| (21) | R1 Supply |
| (22) | R1 |
| (23) | PCS 35 Reverse Clutch |
| (27) | 35 Reverse Feed |
| (28) | 35 Reverse Clutch |
| (29) | 35 Reverse Clutch Feedback |
| (30) | PCS 1234 Clutch |
| (36) | 1234 Clutch Feed |
| (37) | 1234 Clutch |
| (38) | 1234 Clutch Feedback |
| (43) | 26 Clutch Feedback |
| (45) | 1234 Clutch Default |
| (47) | 456 Clutch |
| (50) | Exhaust Backfill |
| (51) | Exhaust |
| (53) | Void |
