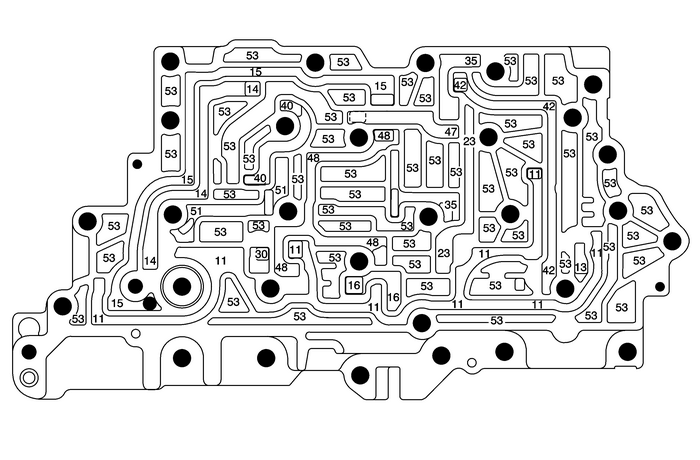

Control Valve Channel Plate– Upper Plate Side

Control Valve Channel Plate - Upper Plate Side Automatic Transmission Unit

(11)	Actuator Feed Limit
(13)	PCS Line
(14)	PCS R1/456 Clutch
(15)	Solenoid 1
(16)	Solenoid 2
(23)	PCS 35 Reverse Clutch
(30)	PCS 1234 Clutch
(35)	Exhaust
(40)	Latch Feed
(42)	PCS 26 Clutch
(47)	456 Clutch
(48)	PCS TCC
(51)	Exhaust
(53)	Void

Control Valve Channel Plate - Upper Body Spacer Plate Side Automatic Transmission Unit

Control Valve Channel Plate– Upper Body Spacer Plate Side(2)Line(4)Converter Feed(7)Cooler Feed(9)Regulated Apply(10)Compensator Feed(11)Actuator Feed Limit(13)PCS Line(14)PCS R1/456 Clutch(15)Solen ...

Control Valve Channel Upper Plate Assembly Automatic Transmission Unit

Control Valve Channel Upper Plate Assembly(11)Actuator Feed Limit(13)PCS Line(14)PCS R1/456 Clutch(15)Solenoid 1(16)Solenoid 2(23)PCS 35 Reverse Clutch(30)PCS 1234 Clutch(42)PCS 26 Clutch(48)PCS TCC(5 ...
