Control Valve Body Replacement Automatic Transmission Unit Control Valve Body

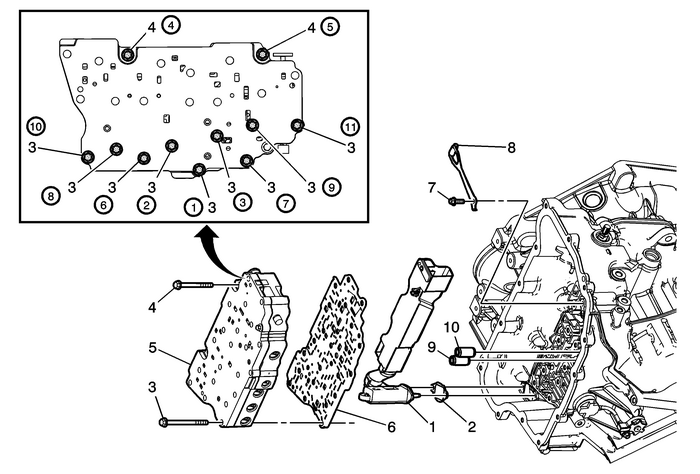

Control Valve Body Replacement

Callout

Component Name

Preliminary Procedure

Remove the control solenoid valve and transmission control module assembly. RefertoControl Solenoid Valve and Transmission Control Module Assembly Replacement.

1

Fluid Level Control Valve

2

Fluid Level Control Valve Gasket

3

Control Valve Body Bolt M6 x 60 (Qty:-9)

Caution:Refer toFastener Caution.

Procedure

Tighten in specified sequence.

Tighten

11-Y (97-lb-in)

4

Control Valve Body Bolt M6 x 53 (Qty:-2)

Procedure

Tighten in specified sequence.

Tighten

11-Y (97-lb-in)

5

Control Valve Body Assembly

6

Control Valve Body Spacer Plate Assembly

7

Manual Shaft Detent Spring Bolt M6 x 16 (Qty: 1)

Procedure

Tighten in specified sequence.

Tighten

12-Y (106-lb-in)

8

Manual Shaft Detent Lever Spring Assembly

9

1-2-3-4 Clutch Fluid Passage Seal

Procedure

Discard the seal. It is not reusable.

10

Low/Reverse Clutch Fluid Passage Seal

Procedure

Discard the seal. It is not reusable.
