Warning:Valve springs can be tightly compressed. Use care whenremoving retainers and plugs. Personal injury could result. Caution:After cleaning the transmission components, allow to air dry.Do not use cloth or paper towels in order to dry any transmissioncomponents. Lint from the towels can cause componentfailure. Caution:Do not reuse cleaning solvents. Previously used solvents maydeposit sediment which may damage the component. Preliminary Procedure Clean and inspect all valve components and the valve body.The control valve body assembly is only replaceable as anassembly. | |

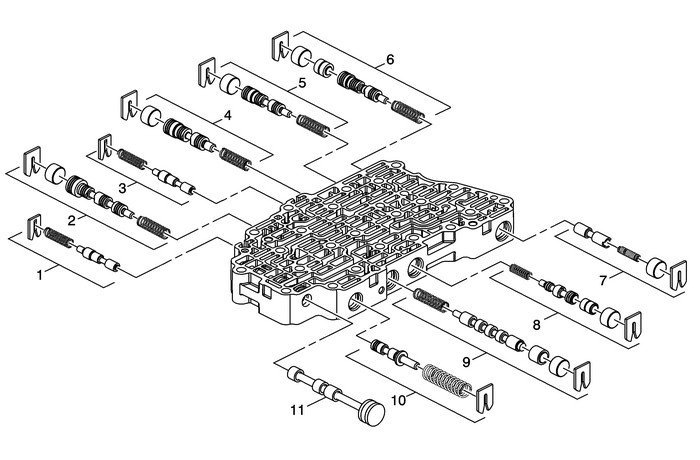

1 | Low-Reverse and 4–5–6 Clutch Boost ValveTrain |
2 | Low-Reverse and 4–5–6 Clutch RegulatorValve Train |
3 | 1–2–3–4 Clutch Boost ValveTrain |
4 | 1–2–3–4 Clutch Regulator ValveTrain |
5 | 2–6 Clutch Regulator ValveTrain |
6 | 3–5 Reverse Clutch Regulator Valve Train |
7 | Defualt Override Valve Train |
8 | TCC Regulator Apply Valve Train |
9 | Clutch Select Valve Train |
10 | Actuator Feed Limit Valve Train |
11 | Manual Valve |
Front Differential Drive Pinion Gear and Carrier Installation Automatic Transmission Unit
Front Differential Drive Pinion Gear and Carrier InstallationCalloutComponent Name1Front Differential Carrier AssemblyNote:Install the differential assembly and the pinion gear assembly together to avoid interferencewith the gears during installasion.2Front Differential Drive Pinion (w/Transfer Gear ...
