Control Valve Body-–-CaseSide

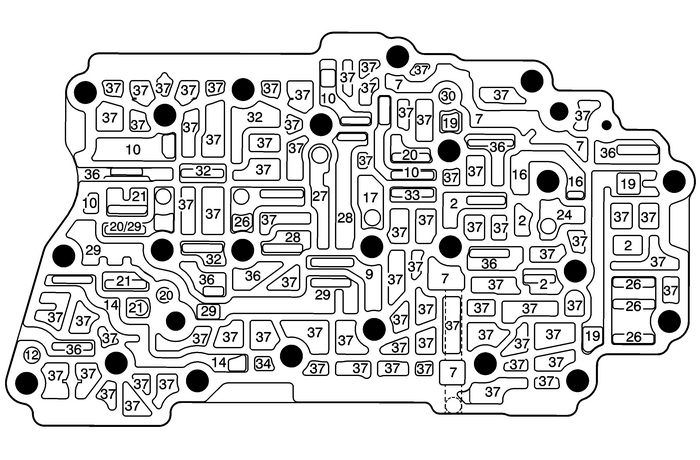

Control Valve Body - Case Side Automatic Transmission Unit

(2)	Line
(7)	Cooler Feed
(9)	Regulated Apply
(10)	Exhaust Backfill
(12)	PCS Line
(14)	Shift Solenoid
(16)	R1/456 Clutch Feedback
(17)	R1
(19)	Reverse
(20)	35 Reverse Clutch Feed
(21)	35 Reverse Clutch
(24)	Auxiliary Line (BAS+Only)
(26)	Drive
(27)	1234 Clutch
(28)	1234 Clutch Feedback
(29)	Drive 1-6
(30)	Latch
(32)	26 Clutch
(33)	456 Clutch
(34)	PCS TCC
(36)	Exhaust
(37)	Void

Electronic Component Description Automatic Transmission Unit

Control Solenoid Valve Assembly(1)Pressure ControlSolenoid-3(R-1/4-5-6)(2)(GEN-1) Pressure ControlSolenoid-2 (3-5-R)(2)(GEN-2) Pressure ControlSolenoid-5(1-2-3-4)(3)Torque ConverterClutch-(TCC) Pressu ...

Control Valve Body - Channel Plate Side Automatic Transmission Unit

Control Valve Body-–-ChannelPlate Side(2)Line(9)Regulated Apply(10)Exhaust Backfill(11)Actuator Feed Limit(12)PCS Line(13)PCS R1/456 Clutch(14)Shift Solenoid(15)R1/456 Clutch Feed(16)R1/456 Clutch F ...
