Control Valve Body Assembly Disassemble (Gen 2) Automatic Transmission Unit Control Valve Body

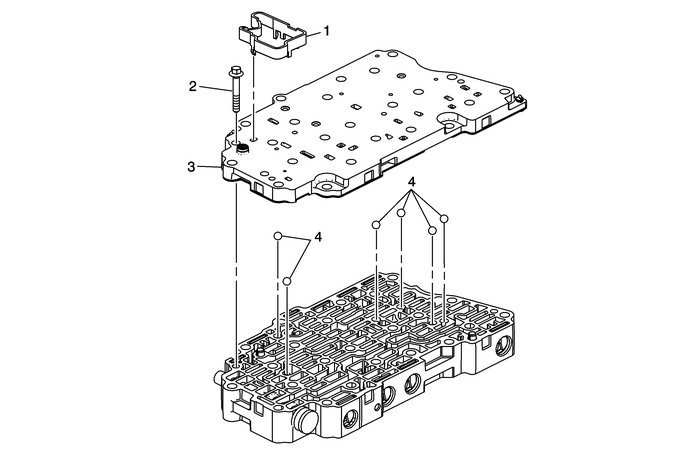

Control Valve Body Assembly Disassemble

Callout

Component Name

1

Control Solenoid Valve Support

2

Control Valve Body Bolt-M5-x-40.5-(Qty:-1)

3

Valve Channel Plate

Note:Inspect the channel plate bolt pass through holes for damage or brinelling. Any damagewill cause incorrect pressure switch operation. Replace as necessary.

4

Valve Body Ball Check Valves-(Qty:-6)
