Control Valve Body Assembly Assemble (Gen 2) Automatic Transmission Unit Control Valve Body

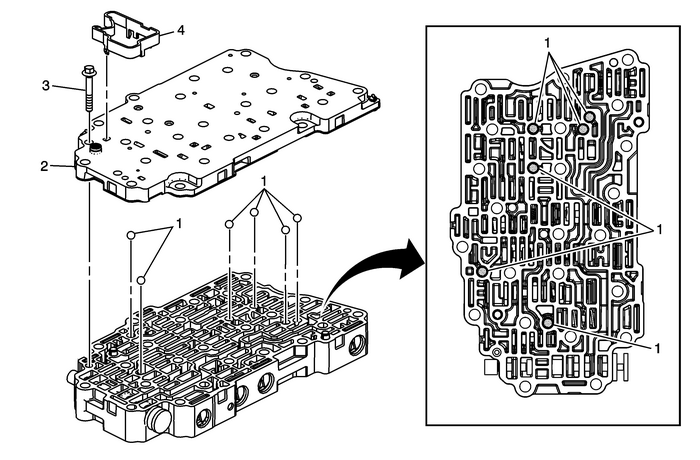

Control Valve Body Assembly Assemble

Callout

Component Name

1	Valve Body Ball Check Valve-(Qty:-6)
2	Valve Channel Plate
3	Control Valve Body Bolt-M5-x-40.5-(Qty:-1) Caution:Refer toFastener Caution. Tighten 7-Y (62-lb-in)
4	Control Solenoid Valve Support
