Control Solenoid (w/Body and TCM) Valve Assembly

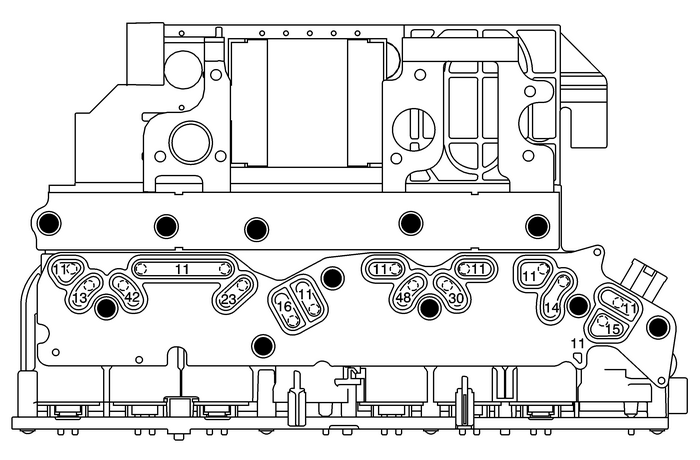

Control Solenoid (w/Body and TCM) Valve Assembly Automatic Transmission Unit

:ii

(11)Actuator Feed Limit
(13)PCS Line
(14)PCS R1/456 Clutch
(15)Solenoid 1
(16)Solenoid 2
(23)PCS 35 Reverse Clutch
(30)PCS 1234 Clutch
(42)PCS 26 Clutch
(48)PCS TCC
Control Solenoid (w/Body and TCM) Valve Assembly - Channel Plate Side Automatic Transmission Unit
Control Solenoid (w/Body and TCM) ValveAssembly-–-Channel PlateSidein.(2)Line(11)Actuator Feed Limit(12)PCS Line(13)PCS R1/456 Clutch(14)Shift Solenoid(18)PCS 35 Reverse Clutch(25)PCS 1234 Clutch(31 ...

Control Solenoid Valve and Transmission Control Module Assembly Installation Automatic Transmission Unit
Control Solenoid Valve and Transmission Control Module Assembly InstallationCalloutComponent Name1Control Solenoid Valve Assembly Filter PlateCaution:Use care when removing or installing the filter pl ...
