Chevrolet Equinox Service Manual: Compressor Clutch Plate and Hub Assembly Removal Wheel Hub

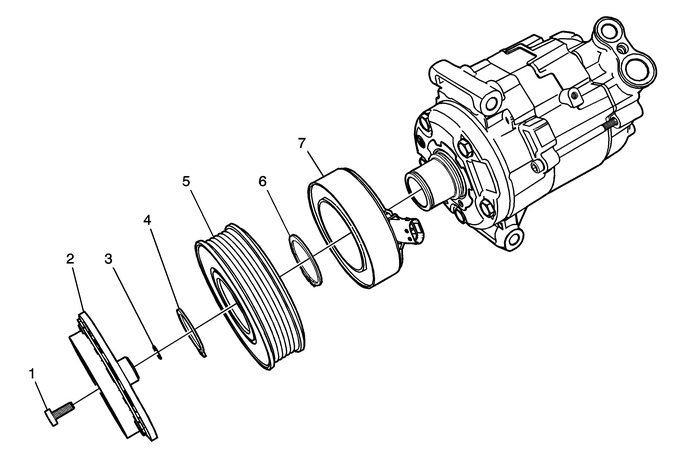

| Preliminary ProceduresRemove the drive belt. Refer toDrive Belt Replacement.Remove the air conditioning compressor if necessary. Refer toAir Conditioning Compressor Replacement.Disconnect the electrical connector from the air conditioningcompressor. | |
1 | Air Conditioning Compressor Pulley Bolt Caution:Refer toFastener Caution. Tighten12-Y(106-lb-in) |
2 | Air Conditioning Clutch Drive Plate Procedure Measure and adjust the air conditioning compressor clutchdrive plate per specification. Refer toAir Conditioning Clutch Drive Plate Adjustment. |
3 | Air Conditioning Compressor Clutch Drive Plate AdjustmentShim |
4 | Air Conditioning Compressor Clutch Pulley Snap Ring Procedure Ensure the clutch pulley snap ring is installed with the flatside toward the air compressor. |
5 | Air Conditioning Compressor Clutch Pulley |
6 | Air Conditioning Compressor Clutch Coil Snap Ring Procedure Ensure the clutch coil snap ring is installed with the flatside toward the air compressor. |
7 | Air Conditioning Compressor Clutch Coil |
