Communication Interface Module Replacement Entertainment

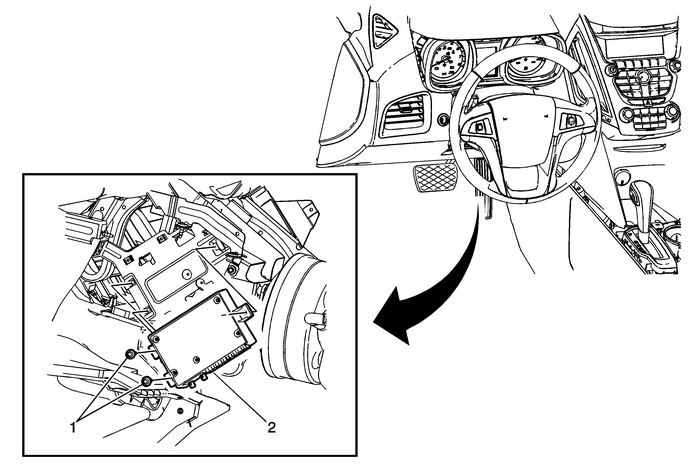

Communication Interface Module Replacement

Callout

Component Name

Preliminary Procedure

Remove the driver side knee bolster reinforcement. Refer toDriver Knee Bolster Reinforcement Replacement

1

Communication Interface Module Bolt(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

2

Communication Interface Module

ProcedureDisconnect the electrical connections.If replacing the communication interface module be sure totransfer bluetooth antenna, if equipped.For programming and set up procedures, refer toControl Module References
