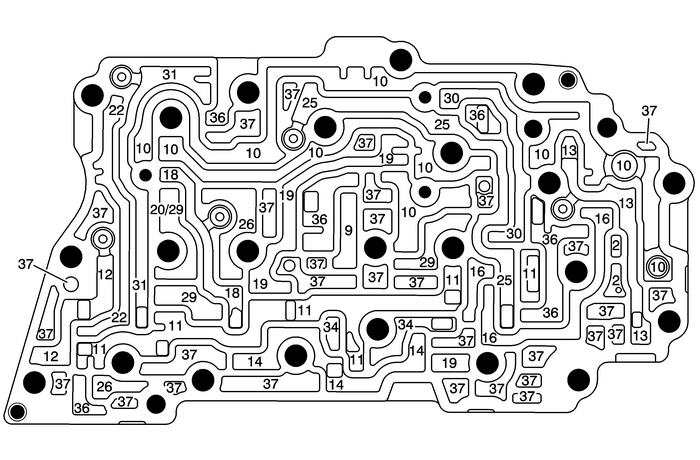

Channel Plate-–-ControlValve Body Side

Channel Plate - Control Valve Body Side Automatic Transmission Unit

(2)	Line
(9)	Regulated Apply
(10)	Exhaust Backfill
(11)	Actuator Feed Limit
(12)	PCS Line
(13)	PCS R1/456 Clutch
(14)	Shift Solenoid
(16)	R1/456 Clutch Feedback
(18)	PCS 35 Reverse Clutch
(19)	Reverse
(20)	35 Reverse Clutch Feed
(22)	Default
(25)	PCS 1234 Clutch
(26)	Drive
(29)	Drive 1-6
(30)	Latch
(31)	PCS 26 Clutch
(34)	PCS TCC
(36)	Exhaust
(37)	Void
