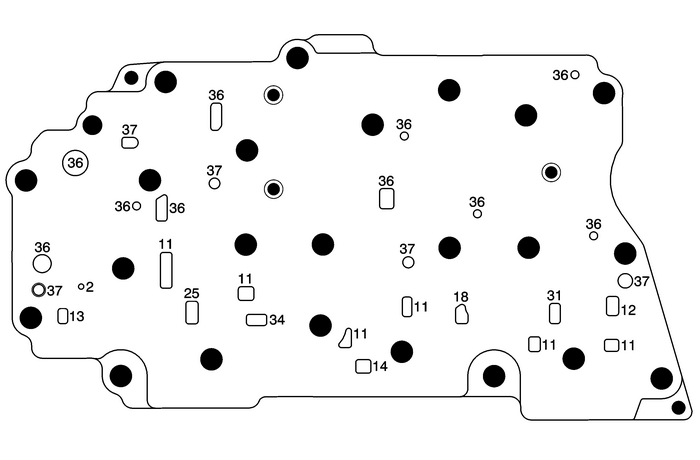

Channel Plate-–-ControlSolenoid (w/Body and TCM) Valve Assembly Side

Channel Plate - Control Solenoid (w/Body and TCM) Valve Assembly Side Automatic Transmission Unit

(2)Line
(11)Actuator Feed Limit
(12)PCS Line
(13)PCS R1/456 Clutch
(14)Shift Solenoid
(18)PCS 35 Reverse Clutch
(25)PCS 1234 Clutch
(31)PCS 26 Clutch
(34)PCS TCC
(36)Exhaust
(37)Void
Case Cover Assembly Installation Automatic Transmission Unit
Case Cover Assembly InstallationCalloutComponent Name1Input Shaft Thrust BearingNote:Note location of the orientation lip on bearing. All thrust bearings can only be assembledone way.2A/Trans Case Cov ...

Channel Plate - Control Valve Body Side Automatic Transmission Unit
Channel Plate-–-ControlValve Body Side(2)Line(9)Regulated Apply(10)Exhaust Backfill(11)Actuator Feed Limit(12)PCS Line(13)PCS R1/456 Clutch(14)Shift Solenoid(16)R1/456 Clutch Feedback(18)PCS 35 Reve ...
