Catalytic Converter Replacement - Right Side (LFX) Emissions Catalytic Converter

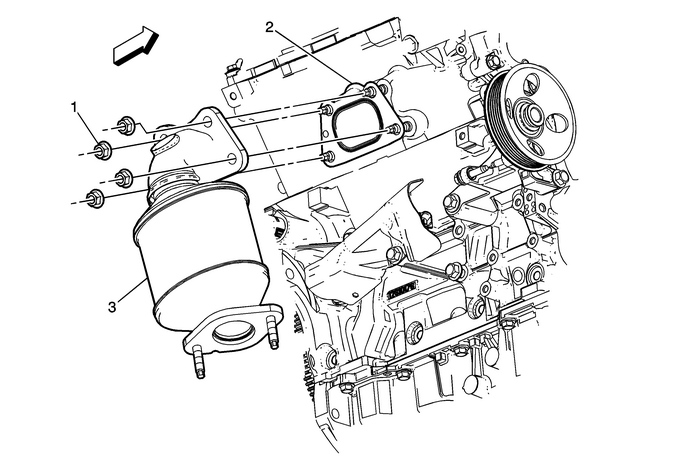

Catalytic Converter Replacement - Right Side

Callout

Component Name

Warning:Refer toHot Exhaust System Warning. Preliminary ProcedureDisconnect the oxygen sensor electrical connectors.Remove the catalytic converter heat shield.Refer toCatalytic Converter Heat Shield ReplacementRemove the exhaust flexible pipe. Refer toExhaust Flexible Pipe Replacement.
1	Catalytic Converter Nut (Qty:-4) Caution:Refer toFastener Caution. Caution:To prevent damage to the exhaust manifold flange or stud,make sure the flange is fully seated before tightening. ProcedureReplace nuts and gasket with new ones.Clean and inspect the studs on the engine cylinder head,replace as necessary.Verify that the studs are fully seated. Stud collar shouldtouch the surface of the engine cylinder head.Tighten nuts in a criss-cross pattern.Tighten First Pass: 20-Y(15-lb-ft)Final Pass: 46-Y(34-lb-ft)
2	Gasket Tip:Improperly installed and/or leaking exhaust manifold gasketsmay affect vehicle emissions and/or On-Board Diagnostics (OBD) IIsystem performance.
3	Catalytic Converter Tip:If replacing catalytic converter,transfer both oxygensensors.

Catalytic Converter Replacement - Left Side (LFX) Emissions Catalytic Converter

Catalytic Converter Replacement - Left SideCalloutComponent NameWarning:Refer toHot Exhaust System Warning.Preliminary ProcedureRemove the catalytic converter heat shield.Refer toCatalytic Converter H ...

Torque Reaction Against Timing Drive Chain Caution Valvetrain Valvetrain Timing

Caution:A wrench must be used on the hex of the camshaft whenloosening or tightening in order to prevent component damage.Failure to prevent the torque reaction against the timing drivechain can lead ...
