Catalytic Converter Brace Replacement (LEA) Emissions Catalytic Converter

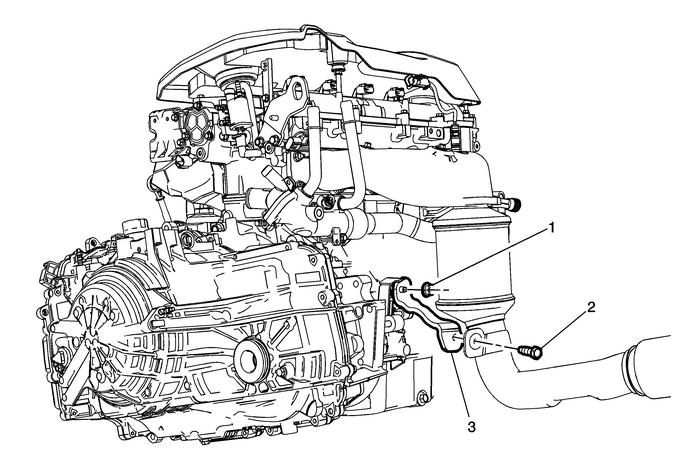

Catalytic Converter Brace Replacement

Callout

Component Name

Preliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the catalytic converter. Refer toCatalytic Converter Replacement.
1	Catalytic Converter Bracket Nut Warning:Refer toExhaust Service Warning. Caution:Refer toFastener Caution. Tighten 50-Y (37-lb-ft)
2	Exhaust Manifold Pipe Bracket Bolt Tighten 50-Y (37-lb-ft)
3	Catalytic Converter Bracket ProcedureRemove the catalytic converter fastener to brace.Remove the catalytic converter brace-(2).
