Chevrolet Equinox Service Manual: Camshaft Timing Chain Components Removal Valvetrain Valvetrain Timing

Chevrolet Equinox Service Manual / Powertrain / Engine / Camshaft Timing Chain Components Removal Valvetrain Valvetrain Timing

Table 1:	Secondary Camshaft Drive Chain Components Removal - Right Side
Table 2:	Primary Camshaft Drive Chain Components Removal
Table 3:	Secondary Camshaft Drive Chain Components Removal - Left Side

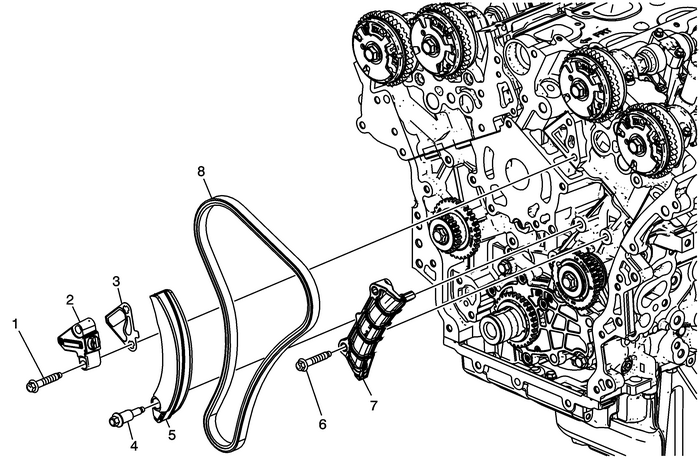

Secondary Camshaft Drive Chain Components Removal - Right Side

Camshaft Timing Chain Components Removal Valvetrain Valvetrain Timing

Secondary Camshaft Drive Chain Components Removal - Right Side

Callout

Component Name

1	Right Secondary Camshaft Drive Chain Tensioner Bolt
2	Right Secondary Camshaft Drive Chain Tensioner
3	Right Secondary Camshaft Drive Chain Tensioner Gasket Note:Discard the gasket.
4	Right Secondary Camshaft Drive Chain Shoe Bolt
5	Right Secondary Camshaft Drive Chain Shoe
6	Right Secondary Camshaft Drive Chain Guide Bolt
7	Right Secondary Camshaft Drive Chain Guide
8	Right Secondary Camshaft Drive Chain

Primary Camshaft Drive Chain Components Removal

Camshaft Timing Chain Components Removal Valvetrain Valvetrain Timing

Primary Camshaft Drive Chain Components Removal

Callout

Component Name

1	Primary Camshaft Drive Chain Tensioner Bolt
2	Primary Camshaft Drive Chain Tensioner
3	Primary Camshaft Drive Chain Tensioner Gasket Note:Discard the gasket.
4	Primary Camshaft Drive Chain Upper Guide Bolt
5	Primary Camshaft Drive Chain Upper Guide
6	Primary Camshaft Drive Chain Lower Guide Bolt
7	Primary Camshaft Drive Chain Lower Guide
8	Primary Camshaft Drive Chain

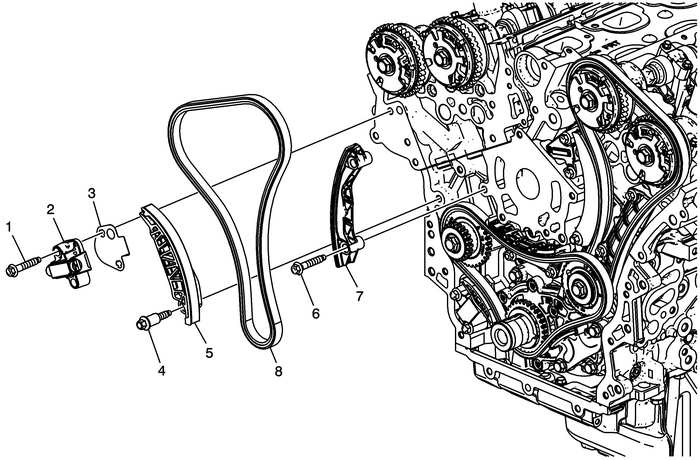

Secondary Camshaft Drive Chain Components Removal - Left Side

Camshaft Timing Chain Components Removal Valvetrain Valvetrain Timing

Secondary Camshaft Drive Chain Components Removal - Left Side

Callout

Component Name

1	Left Secondary Camshaft Drive Chain Tensioner Bolt
2	Left Secondary Camshaft Drive Chain Tensioner
3	Left Secondary Camshaft Drive Chain Tensioner Gasket Note:Discard the gasket.
4	Left Secondary Camshaft Drive Chain Shoe Bolt
5	Left Secondary Camshaft Drive Chain Shoe
6	Left Secondary Camshaft Drive Chain Guide Bolt
7	Left Secondary Camshaft Drive Chain Guide
8	Left Secondary Camshaft Drive Chain
