Camshaft Position Sensor Replacement - Bank 2 (Left Side) Intake Engine Control Engine Control Sensors Crankshaft/Camshaft/TDC Position Sensor

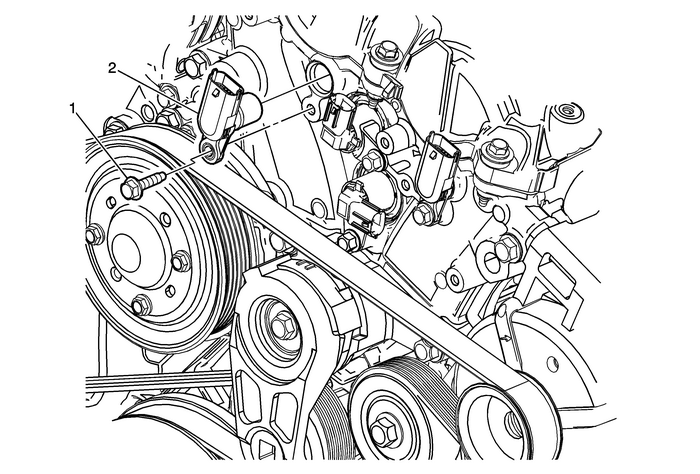

Camshaft Position Sensor Replacement - Bank 2 (Left Side) Intake

Callout

Component Name

Preliminary Procedure

Remove the engine mount bracket. Refer toEngine Mount Bracket Replacement - Right Side.

1

Camshaft Position Sensor Fastener

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

2

Camshaft Position Sensor

Procedure

Disconnect the electrical connector.
