Camshaft Cover Removal - Left Side Valvetrain Camshaft

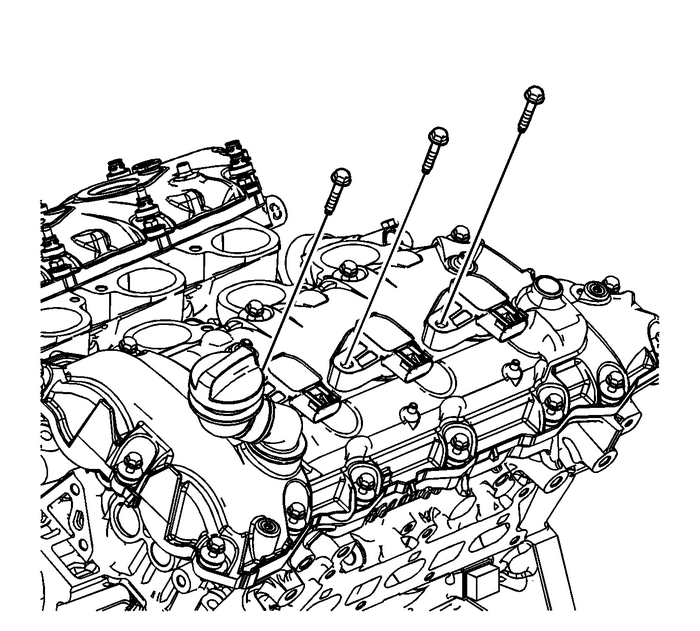

Remove the ignition coil bolts.

Camshaft Cover Removal - Left Side Valvetrain Camshaft

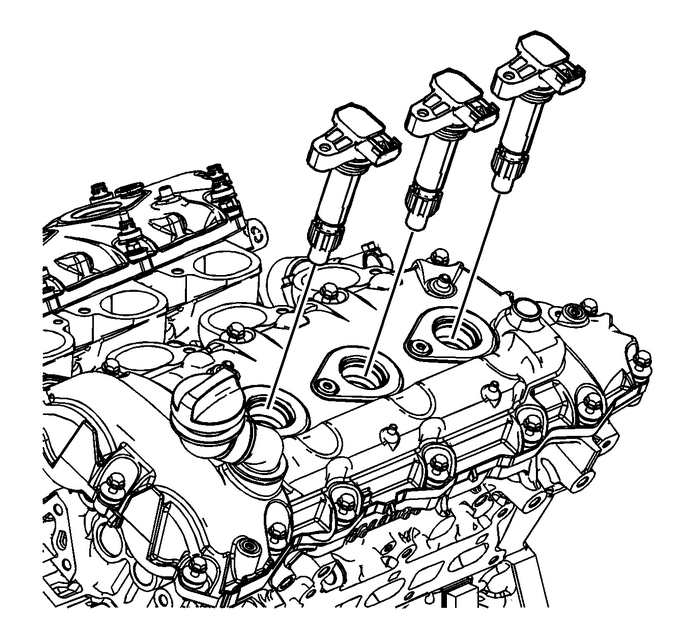

Remove the ignition coils.

Camshaft Cover Removal - Left Side Valvetrain Camshaft

Remove the left camshaft cover bolts.Remove and discard the camshaft cover grommets and camshaftcover bolts if they are serviced with the grommet.

Camshaft Cover Removal - Left Side Valvetrain Camshaft

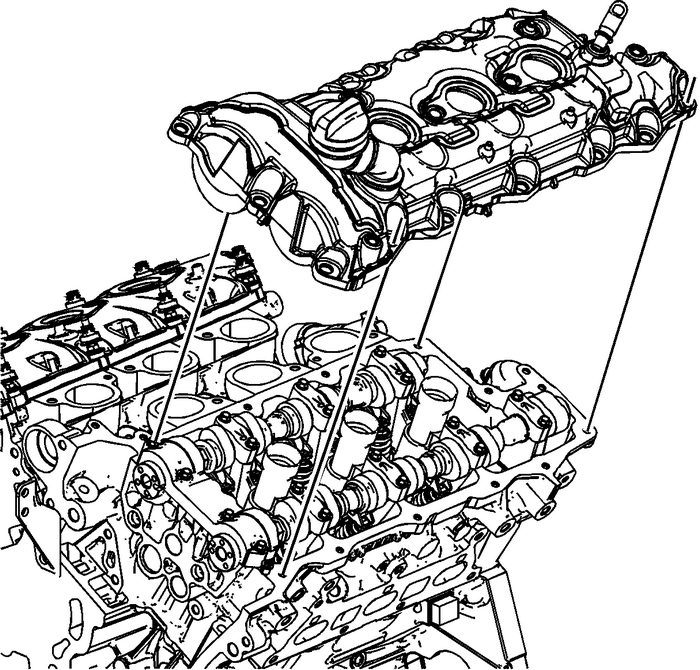

Remove the left camshaft cover from the left cylinderhead.

Fuel Pump Removal Fuel System Fuel Pumps

Remove the fuel rail noise shield-(1).Remove the fuel rail wiring connectors from the fuel feedpipe bracket.Remove the fuel feed pipe bolts-(1).Remove and discard the fuel feed pipe-(2).Remove and dis ...

Camshaft Cover Removal - Right Side Valvetrain Camshaft

Remove the ignition coil bolts.Remove the ignition coils.Remove the right camshaft cover bolts.Remove and discard the camshaft cover grommets and camshaftcover bolts if they are serviced with the grom ...
