Chevrolet Equinox Service Manual: Camshaft Cover Assemble Valvetrain Camshaft
Special ToolsDT 5590Bearing and Seal DriverJ-25254-AOil Seal Installer
For equivalent regional tools, refer toSpecial Tools.
Left Camshaft Cover

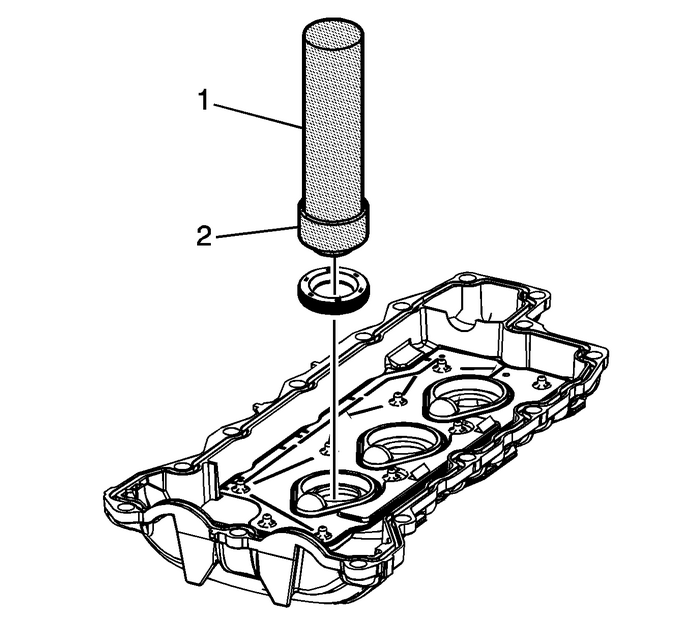

Install the NEW left spark plug shield tube seals using theDT 5590driver-(1) andJ-25254-Ainstaller-(2) .

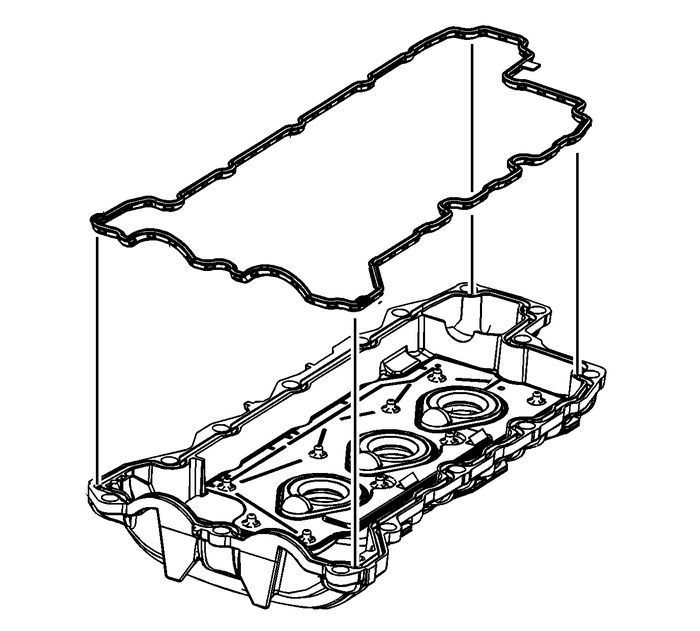

Install the NEW left camshaft cover gasket.

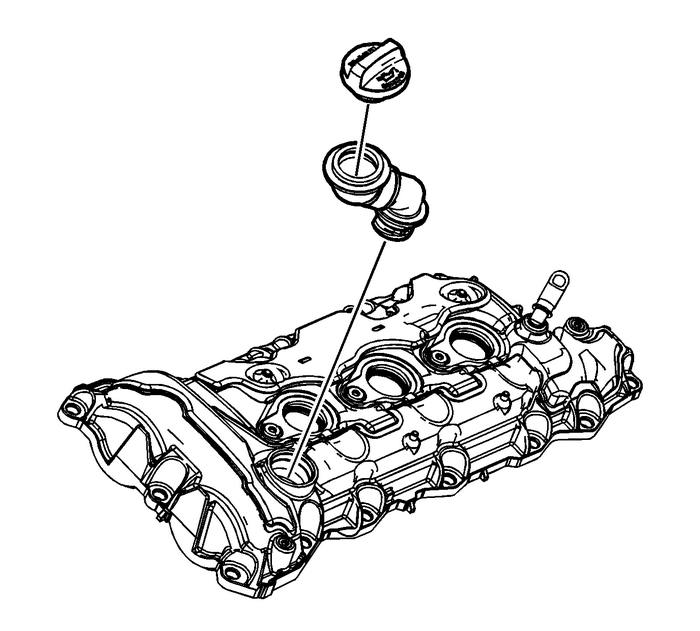

Install the oil fill cap.
Caution:Refer toFastener Caution.

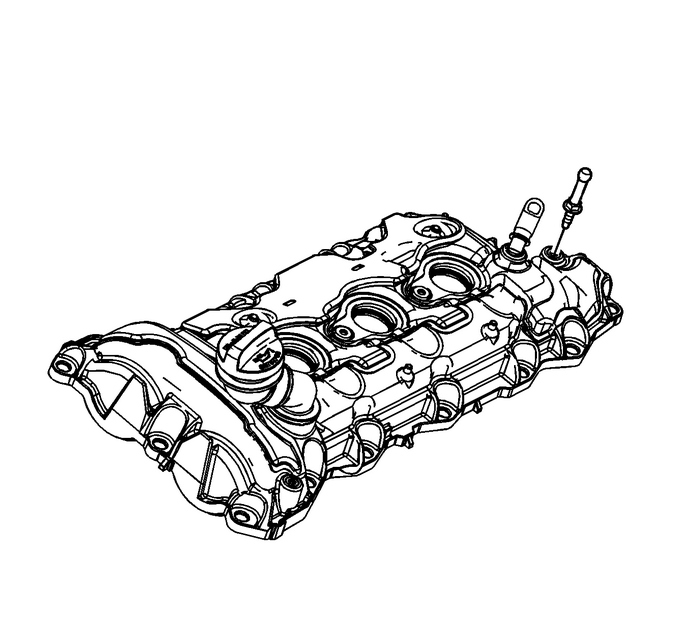

Install the fuel injector sight shield cover ballstud andtighten to10-Y(89-lb-in).
Note:The camshaft cover bolt grommet must be installed into thecamshaft cover bolt hole before installing the camshaft coverbolt.

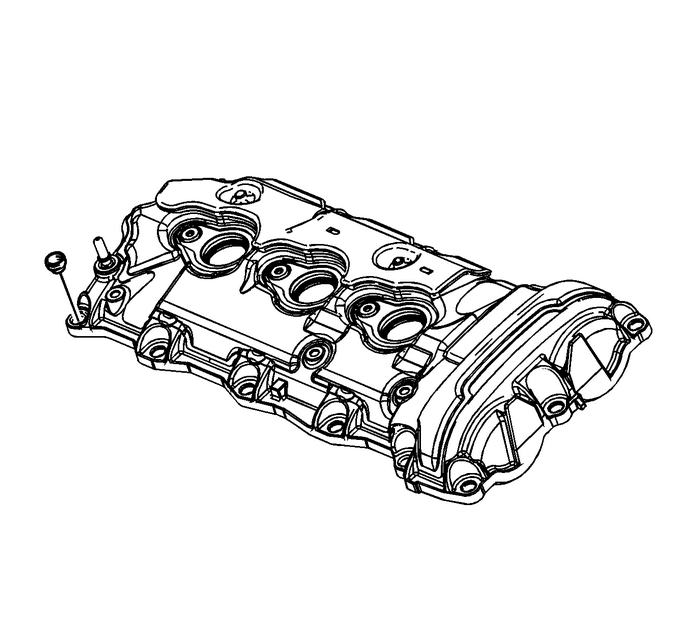

Install the NEW left camshaft cover bolt grommets.Right Camshaft Cover

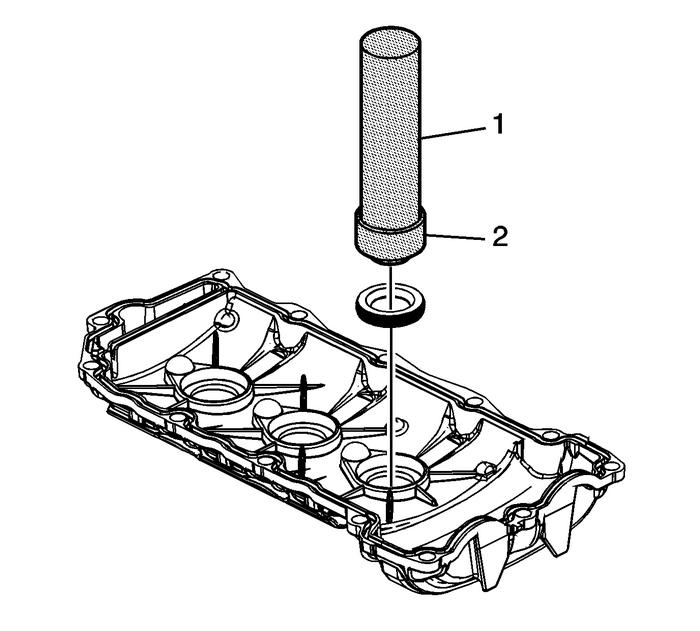

Install the NEW right spark plug shield tube coil seals usingtheDT 5590driver-(1) andJ-25254-Ainstaller-(2) .

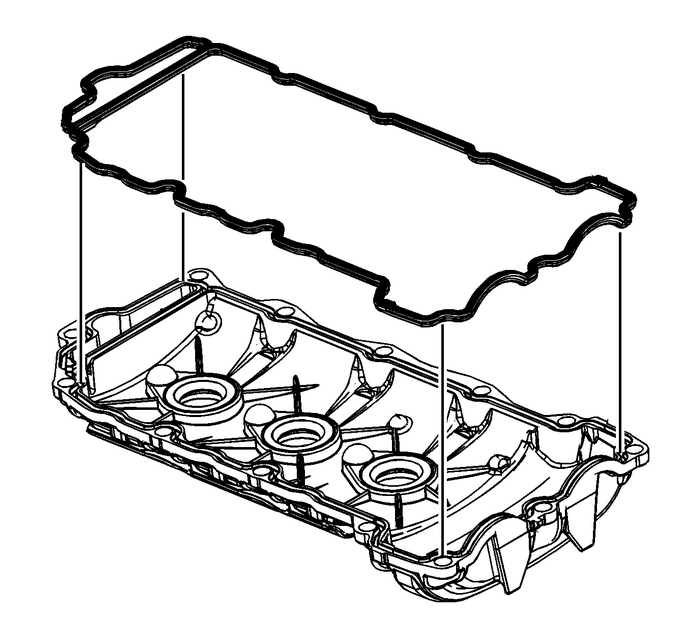

Install the NEW right camshaft cover gasket.
Note:The camshaft cover bolt grommet must be installed into thecamshaft cover bolt hole before installing the camshaft coverbolt.
Install the NEW right camshaft cover bolt grommets.
