Chevrolet Equinox Service Manual: Brake Fluid Level Indicator Switch Replacement

Chevrolet Equinox Service Manual / Chassis / Brakes / Brake Fluid Level Indicator Switch Replacement

Removal ProcedureRemove the accessory wiring junction block. Refer toAccessory Wiring Junction Block Replacement.Disconnect the brake fluid level indicator switch electricalconnector.

Brake Fluid Level Indicator Switch Replacement

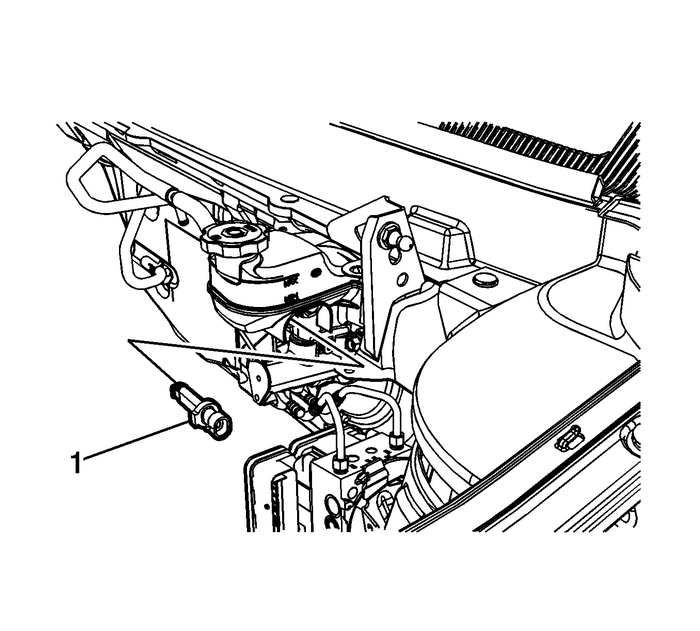

While compressing the retaining tabs on the inboard side ofthe brake fluid level indicator switch-(1), carefullyremove the switch from the brake master cylinder reservoir.Installation Procedure

Brake Fluid Level Indicator Switch Replacement

Note:Ensure the retaining tabs on the brake fluid level indicatorswitch are fully engaged in the master cylinder reservoir.

Install the brake fluid level indicatorswitch-(1)-by carefully inserting the switchinto the master cylinder reservoir.Connect the brake fluid level indicator switch electricalconnector.Install the accessory wiring junction block. Refer toAccessory Wiring Junction Block Replacement.
