Battery Tray Support Replacement Battery Holder and Tiedown

Battery Tray Support Replacement

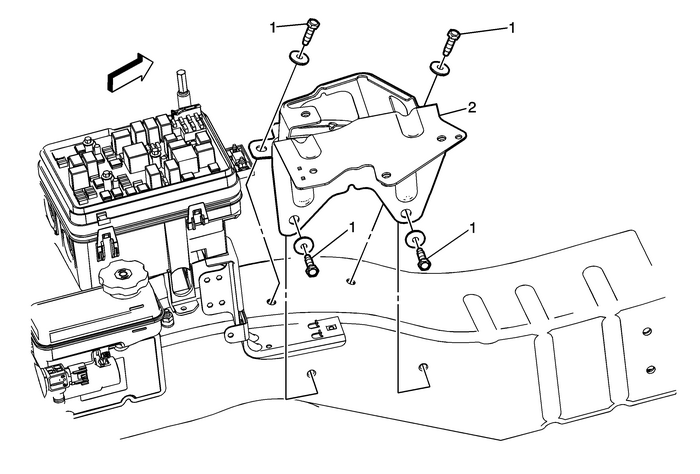

Callout

Component Name

Preliminary ProcedureDisconnect the negative battery cable.Refer toBattery Negative Cable Disconnection and Connection.Remove the positive battery cable.Refer toBattery Positive Cable ReplacementRemove the battery.Refer toBattery ReplacementRemove the battery tray.Refer toBattery Tray Replacement

Bolt (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

22-Y(16-lb-ft).

Battery Tray Support Bracket

Battery Tray Replacement Battery Holder and Tiedown

Battery Tray ReplacementCalloutComponent NamePreliminary ProcedureRemove the battery.Refer toBattery Replacement1Bolt (Qty:-3)Caution:Refer toFastener Caution.Tighten22-Y(16-lb-ft).2Battery TrayTip:Un ...

Battery Negative Cable Replacement (LFX) Low Voltage Battery

Removal ProcedureRecord all of the radio station presets.Disconnect the battery negative cable. Refer toBattery Negative Cable Disconnection and Connection.Disconnect the battery current sensor from t ...
