Chevrolet Equinox Service Manual: Balance Shaft Installation Engine Block Cylinder Block Balance Shaft
Note:This procedure is not used in Europe.
Special Tools
EN-43650 Balance Shaft Bushing Remover/Installer
For equivalent regional tools, refer toSpecial Tools.

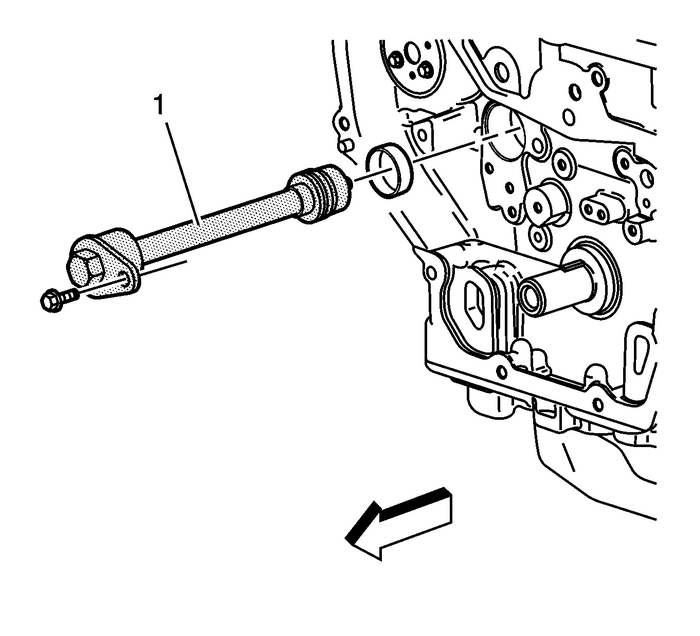

Install the balance shaft bushing using the EN-43650 installer-(1).

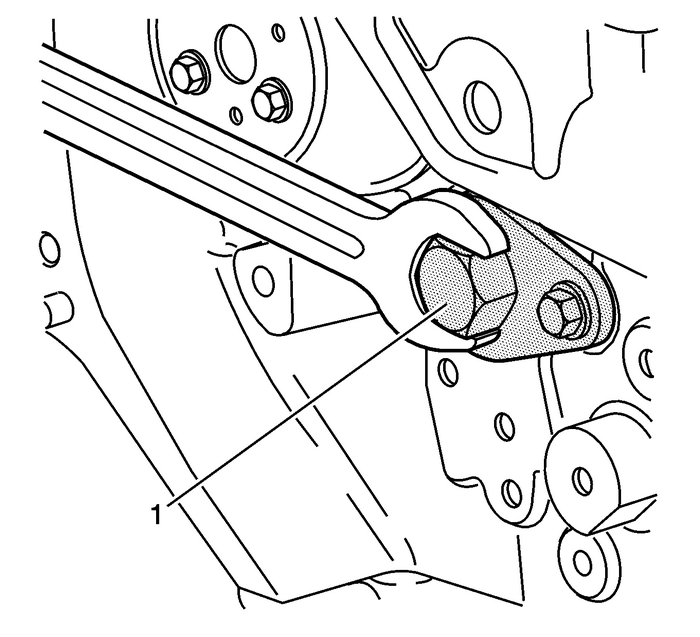

Seat the balance shaft bushing into the bore using the EN-43650 installer-(1) and a wrench.When the EN-43650 installeris fully seated in the engine block, remove it with a wrench.
Note:If the balance shafts are not properly timed to the engine, the engine may vibrateor make noise.

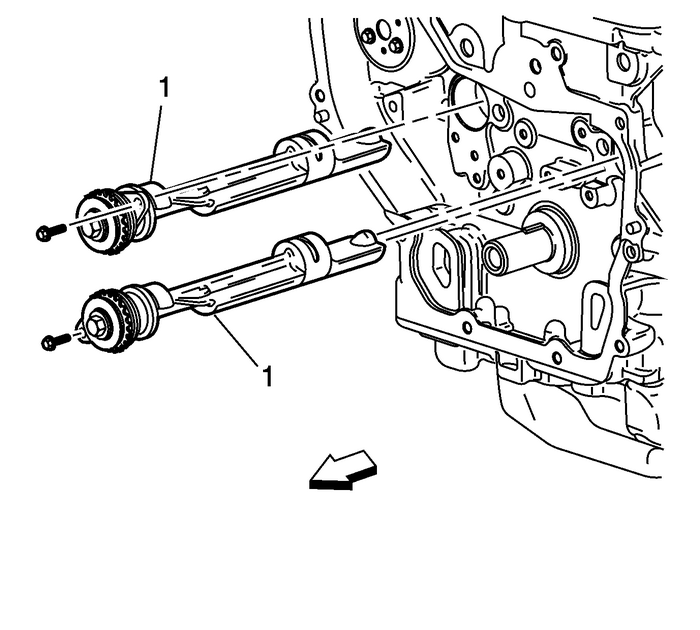

Place the number one piston at top dead center (TDC).Lubricate the balance shaft lobes with engine oil.Install the balance shafts-(1) into their bores.Caution:Refer toFastener Caution.
Install the balance shaft retaining bolts and tighten to 10-Y -(89-lb-in).
Balance Shaft Removal Engine Block Cylinder Block Balance Shaft
Note:This procedure is not used in Europe.Special Tools EN-43650 Balancer Shaft Bearing Remover and InstallerFor equivalent regional tools, refer toSpecial Tools.Remove the balance shaft bearing carri ...
Piston, Connecting Rod, and Bearing Installation (LAF, LAT, LE5, LE9, LEA, or LUK) Engine Block Cylinder Block Piston Assembly
Note:This procedure is not used in Europe.Special ToolsEN-43966 Connecting Rod GuidesEN 45059 Angle MeterEN-47836 Piston Ring CompressorFor equivalent regional tools, refer toSpecial Tools.Install the ...
