Automatic Transmission Range Selector Lever Replacement Automatic Transmission Unit

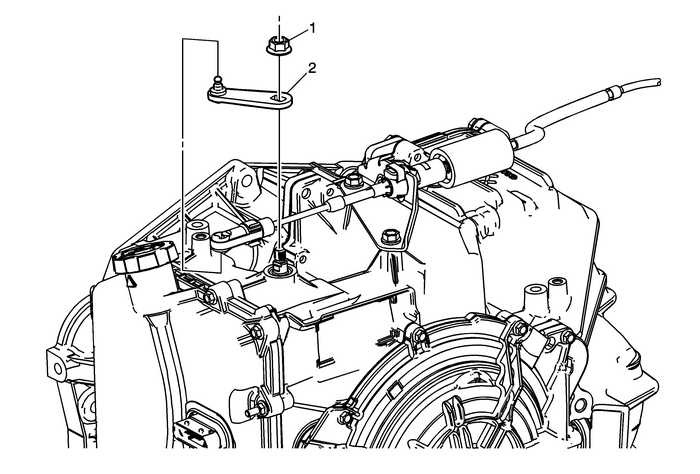

Automatic Transmission Range Selector Lever Replacement

Callout

Component Name

Preliminary ProceduresSet the park brake and chock the wheels.Disconnect the range selector cable from the range selectorlever.

Transmission Range Selector Lever Nut

Warning:Hold the transmission range selector lever while removing orinstalling the lever retaining nut. Failure to hold the lever cancause damage to the transmission internal park system componentswhich could allow the vehicle to roll when placed in the parkposition.

Caution:Refer toFastener Caution.

Tighten

20-Y(15-lb-ft)

Transmission Range Selector Lever

Automatic Transmission Fluid Pressure Test Hole Plug Replacement Automatic Transmission Unit

Automatic Transmission Fluid Pressure Test Hole Plug ReplacementCalloutComponent NamePreliminary ProcedureRaise the vehicle. Refer toLifting and Jacking the Vehicle.1Fluid Pressure Test PlugCaution:Re ...

Case - Control Valve Body Side Automatic Transmission Unit

Case-–-Control Valve BodySide(2)Line(7)Cooler Feed(9)Regulated Apply(10)Exhaust Backfill(12)PCS Line(16)R1/456 Clutch Feedback(17)R1(19)Reverse(20)35 Reverse Clutch Feed(21)35 Reverse Clutch(24)Auxi ...
