Automatic Transmission Fluid Pressure Test Hole Plug Replacement Automatic Transmission Unit

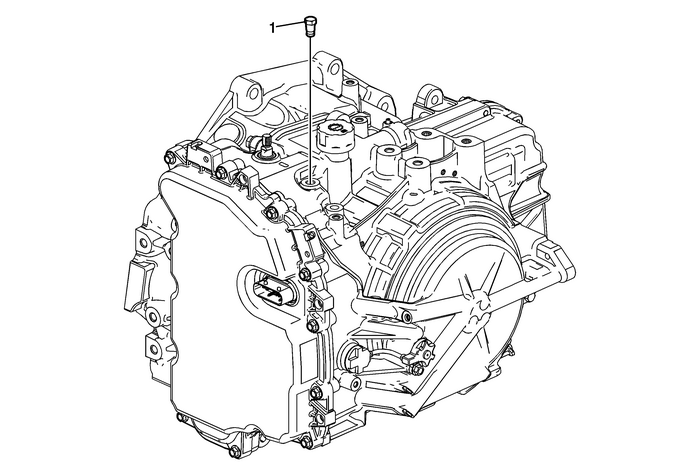

Automatic Transmission Fluid Pressure Test Hole Plug Replacement

Callout

Component Name

1

Fluid Pressure Test Plug

Caution:Refer toComponent Fastener Tightening Caution.

Tighten

12-Y(106-lb-in)
