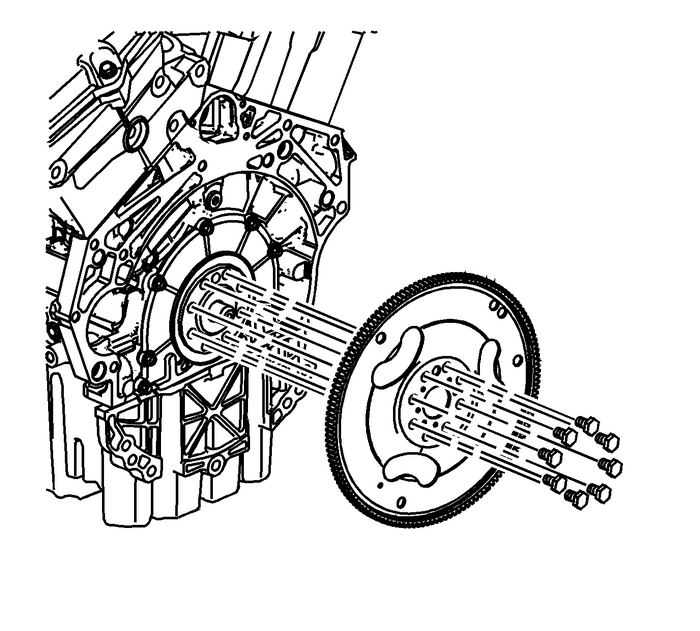

Chevrolet Equinox Service Manual: Automatic Transmission Flex Plate Replacement Manual Clutch Pressure Plate Assembly
Removal Procedure
Remove the transmission. Refer toTransmission Replacement.Remove the flywheel. Refer toEngine Flywheel RemovalClean and inspect the flywheel. Refer toEngine Flywheel Cleaning and Inspection. If the flywheel teeth aredamaged, inspect the starter for proper operation. Replace thestarter if you find excessive wear or damage to the starterdrive.Installation Procedure
Install the flywheel. Refer toEngine Flywheel InstallationInstall the transmission. Refer toTransmission Replacement.
