Chevrolet Equinox Service Manual: Automatic Transmission Flex Plate Installation Manual Clutch Pressure Plate Assembly

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Automatic Transmission Flex Plate Installation Manual Clutch Pressure Plate Assembly

Special ToolsEN 45059 Angle MeterEN 46106 Engine Flywheel Holding Tool

For equivalent regional tools, refer toSpecial Tools.

Automatic Transmission Flex Plate Installation Manual Clutch Pressure Plate Assembly

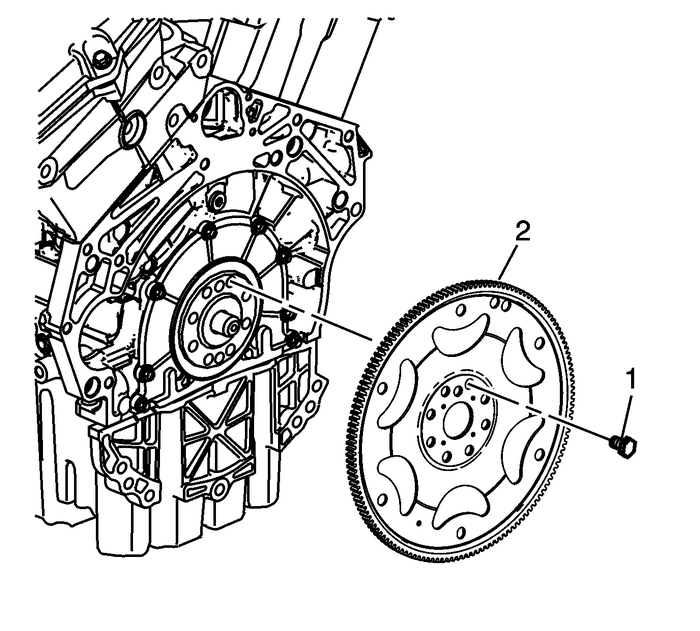

Place the flex plate-(2) in position on the crankshaft.

Caution:This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEWtorque-to-yield or single use fastener when installing this component. Failure toreplace the torque-to-yield or single use fastener could cause damage to the vehicleor component.

Install 2-NEW bolts-(1) in location at the top and bottom of the flex plate bolt patternallowing the flex plate-(2) to hang in position.

Automatic Transmission Flex Plate Installation Manual Clutch Pressure Plate Assembly

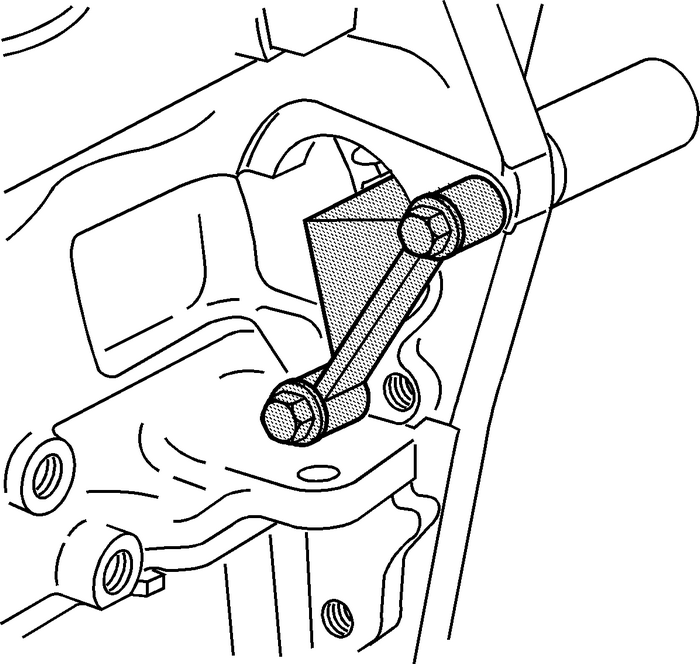

Install the EN 46106 tool.

Automatic Transmission Flex Plate Installation Manual Clutch Pressure Plate Assembly

Caution:Refer toFastener Caution.

Install the remaining NEW flex plate bolts-(1).Tighten the NEW flex plate bolts-(1) to 30-Y (22-lb-ft).Tighten the NEW flex plate bolts-(1) an additional 75-degrees using the EN 45059 meter.

Automatic Transmission Flex Plate Installation Manual Clutch Pressure Plate Assembly

Remove the EN 46106 tool.

Engine Flywheel Removal Flywheel/Flexplate
Special ToolsEN 43653Flywheel Holding ToolFor equivalent regional tools, refer toSpecial ToolsEnsure thatEN 43653toolis installed and engaging the flywheel to preventcrankshaft rotation.Remove the fly ...

Engine Flywheel Removal Flywheel/Flexplate
Special Tools EN 46106 Flywheel Holding ToolFor equivalent regional tools, refer toSpecial Tools.Install the EN 46106 tool through the starter mounting hole.Remove the flex plate bolts-(1) and discard ...
