Chevrolet Equinox Owners Manual: Automatic Headlamp System
When the exterior lamp control is set to AUTO and it is dark enough outside, the headlamps come on automatically.

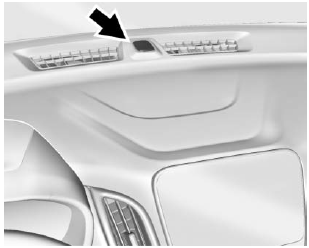

There is a light sensor on top of the instrument panel. Do not cover the sensor; otherwise the headlamps will come on when they are not needed.
The system may also turn on the headlamps when driving through a parking garage or tunnel.
When it is bright enough outside, the headlamps will turn off or may change to Daytime Running Lamps (DRL).
The automatic headlamp system
turns off when the exterior lamp
control is turned to
or the
ignition
is off.
Lights On with Wipers
If the windshield wipers are activated in daylight with the engine on, and the exterior lamp control is in AUTO, the headlamps, parking lamps, and other exterior lamps come on. The transition time for the lamps coming on varies based on wiper speed. When the wipers are not operating, these lamps turn off.
Move the exterior lamp control to
or
to disable this feature.
Daytime Running
Lamps (DRL)
DRL can make it easier for others to
see the front of your vehicle during
the day. Fully functional DRL are
required on all vehicles first sold in
Canada.
The DRL system comes on in
daylight w ...
Hazard Warning Flashers
: Press to make the front and
rear turn signal lamps flash on and
off. This warns others that you are
having trouble.
Press again to turn the
flashers off. ...
