Audio/Video Disc Player Adapter Replacement Entertainment Audio-Visual

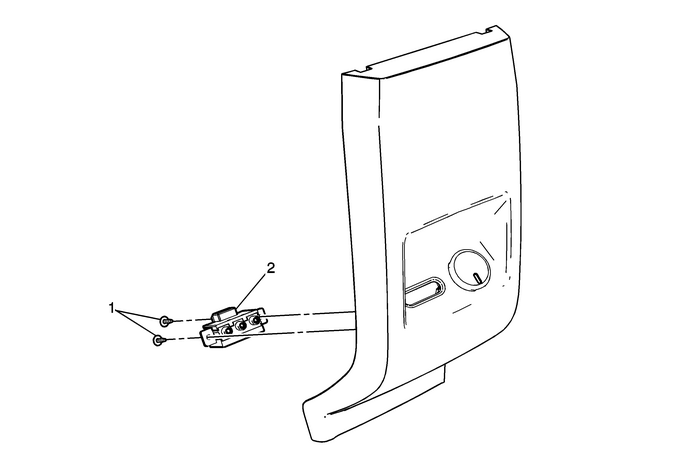

Audio/Video Disc Player Adapter Replacement

Callout

Component Name

Preliminary Procedure

Remove the front floor console rear cover. Refer toFront Floor Console Rear Cover Replacement.

Audio Video Disc Player Adapter Screw(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

Audio Video Disc Player Adapter
