Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement Entertainment Audio

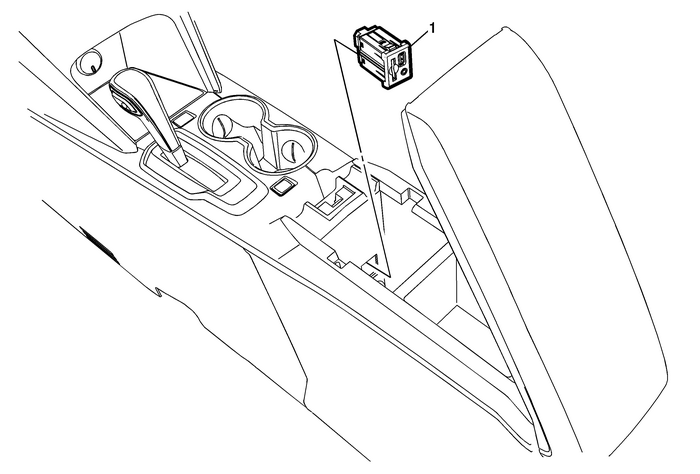

Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement

Callout

Component Name

1

Audio Disc Player, USB, Auxiliary In, and Memory CardReceptacle

ProcedureOpen arm rest and using a small flat bladed tool, release thereceptacle.Disconnect the electrical connector.
