Air Distributor Outer Duct Replacement - Right Side Ignition System Distributor

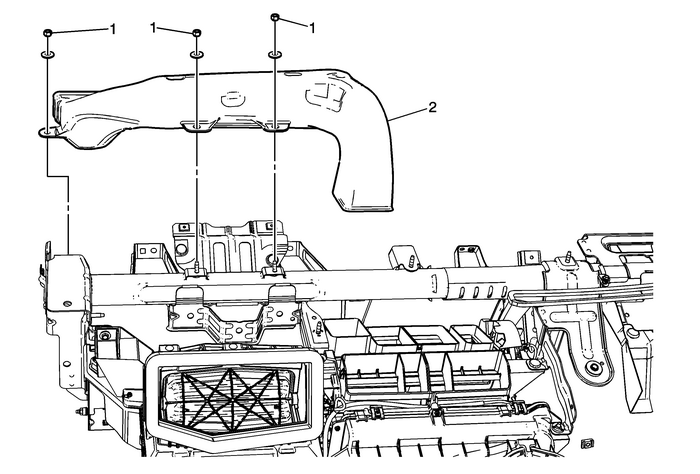

Air Distributor Outer Duct Replacement - Right Side

Callout

Component Name

Preliminary Procedure

Remove the instrument panel lower trim panel retainer. RefertoLower Trim Pad Retainer Replacement.

Air Distributor Outlet Duct – Right Fastener(Qty:-3)

Caution:Refer toFastener Caution.

Tighten

1.5-Y-(13-lb-in)

Air Distributor Outlet Duct – Right
