Air Distributor Outer Duct Replacement - Left Side Ignition System Distributor

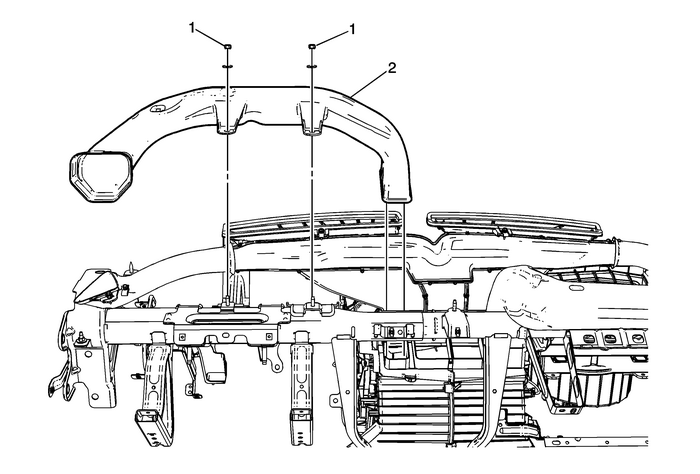

Air Distributor Outer Duct Replacement - Left Side

Callout

Component Name

Preliminary Procedure

Remove the instrument panel lower trim panel retainer. RefertoLower Trim Pad Retainer Replacement.

1

Air Distributor Outlet Duct – Left Fastener(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

1.5-Y-(13-lb-in)

2

Air Distributor Outlet Duct – Left
