Air Conditioning Clutch Drive Plate Adjustment Flywheel/Flexplate

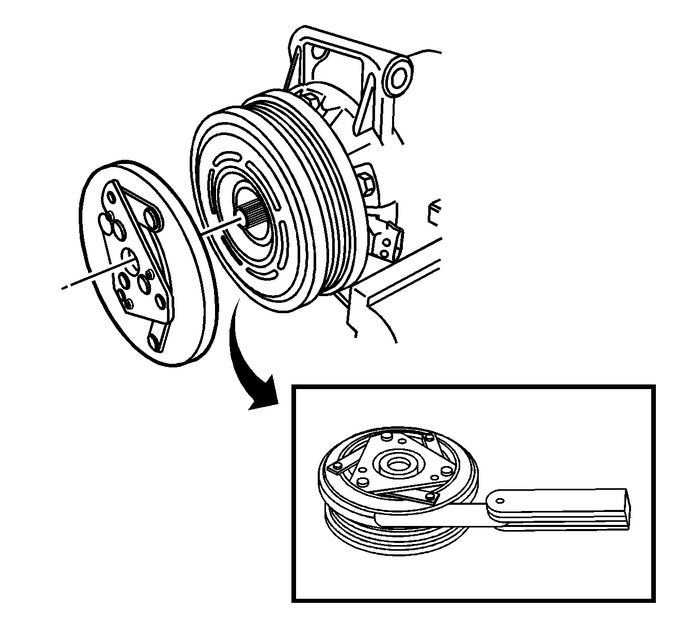

Install the clutch plate assembly.

Note:Ensure the drive plate does not drag against the pulley whenthe pulley is rotated.

Measure the air gap between the pulley and the drive plate.Adjust the shims to achieve a 0.30–0.60-mm(0.011–0.023-in) air gap.

Caution:Refer toFastener Caution.

Install the clutch plate retaining bolt and tighten to12-Y(106-lb-in).
Control Solenoid Valve and Transmission Control Module Assembly Inspection Automatic Transmission Unit
Inspect the control solenoid valve assembly connectors and pins-(1, 2, 11, 13) forthe following conditions:DamageBent pinsDebrisBroken retaining tabContaminationEnsure no metallic debris is inside the ...

Internal Components Removal Automatic Transmission Unit
Internal Components RemovalCalloutComponent Name11–2–3–4 Clutch Backing Plate Retainer RingWarning:The retainer is under tension. Use care when removing orinstalling the retainer. Personal injur ...
