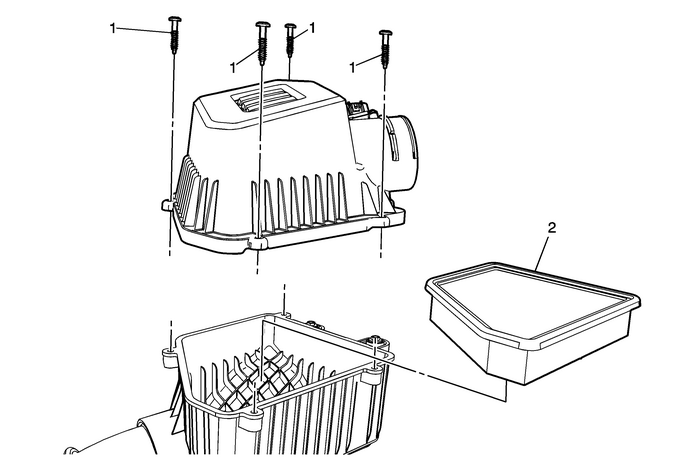

Air Cleaner Element Replacement

Callout

Component Name

Preliminary Procedure

Disconnect the air cleaner outlet duct from the air cleaner.Refer toAir Cleaner Outlet Duct Replacement.

Air Cleaner Fastener (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

2-Y(18-lb-in)

Air Cleaner Element

ProcedureDisconnect the mass airflow with intake air temperaturesensor.Disconnect the throttle inlet absolute pressuresensor.

Air Cleaner Assembly Replacement Intake and Forced Induction Air Filter Assembly

Air Cleaner Assembly ReplacementCalloutComponent NamePreliminary ProceduresRemove the air cleaner outlet duct. Refer toAir Cleaner Outlet Duct Replacement.1Air Cleaner Assembly BoltCaution:Refer toFas ...

Air Cleaner Element Replacement Intake and Forced Induction Air Filter Assembly Air Filter Element

Air Cleaner Element ReplacementCalloutComponent NamePreliminary ProcedureDisconnect the air cleaner outlet duct from the air cleaner.Refer toAir Cleaner Outlet Duct Replacement.1Air Cleaner Fastener ( ...
