Chevrolet Equinox Service Manual: A/Trans Case Assembly - Torque Converter and Differential Housing Side Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / A/Trans Case Assembly - Torque Converter and Differential Housing Side Automatic Transmission Unit

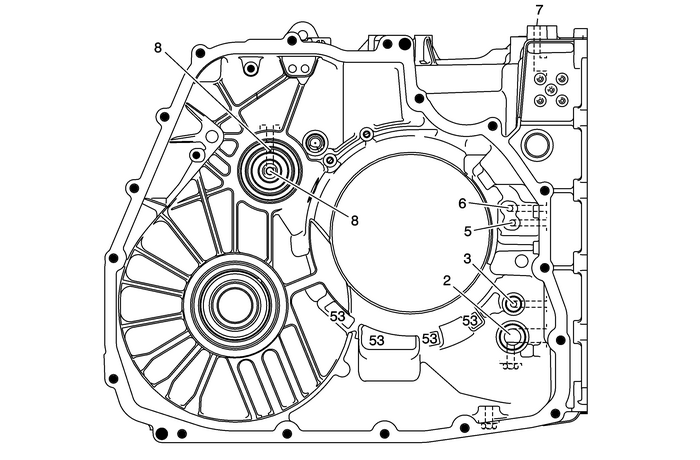

A/Trans Case Assembly– Torque Converter and Differential Housing Side

A/Trans Case Assembly - Torque Converter and Differential Housing Side Automatic Transmission Unit

(2)Line
(3)Decrease
(5)TCC Release
(6)TCC Apply
(7)Cooler Feed
(8)Lube
(53)Void
A/Trans Case Assembly - Control Valve Body Side Automatic Transmission Unit
A/Trans Case Assembly– Control Valve Body Side(2)Line(3)Decrease(5)TCC Release(6)TCC Apply(7)Cooler Feed(10)Compensator Feed(22)R1(28)35 Reverse Clutch(37)1234 Clutch(43)26 Clutch(47)456 Clutch(53)V ...

A/Trans Case Cover Assembly Automatic Transmission Unit
A/Trans Case Cover Assembly(8)Lube(10)Compensator Feed(22)R1(28)35 Reverse Clutch(43)26 Clutch(47)456 Clutch(51)Compensator Feed Exhaust ...
