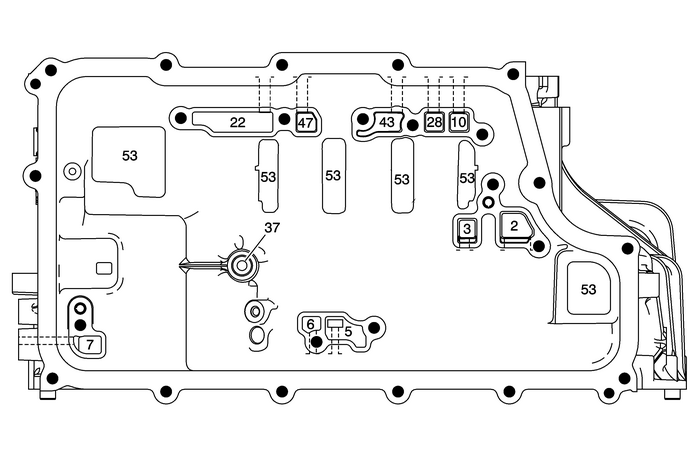

Chevrolet Equinox Service Manual: A/Trans Case Assembly - Control Valve Body Side Automatic Transmission Unit

A/Trans Case Assembly Case Cover Side Automatic Transmission Unit

A/Trans Case Assembly Case Cover Side(2)Line (to valve body)(7)Cooler Feed(8)Lube(10)Compensator Feed(22)R1(28)35 Reverse Clutch(37)1234 Clutch(43)26 Clutch(47)456 Clutch(53)Void ...

A/Trans Case Assembly - Torque Converter and Differential Housing Side Automatic Transmission Unit

A/Trans Case Assembly– Torque Converter and Differential Housing Side(2)Line(3)Decrease(5)TCC Release(6)TCC Apply(7)Cooler Feed(8)Lube(53)Void ...

Other materials:

Input, Reaction, and Output Carrier Installation Automatic Transmission Unit
Input, Reaction, and Output Carrier InstallationCalloutComponent NamePreliminary ProcedureNote location of the orientation lip on bearings. All thrustbearings can only be assembled one way.1Input Shaft Thrust Bearing Assembly2Output Carrier Transfer Drive Gear Hub Assembly3Front Differential Transfe ...
