A/Trans Case Assembly Case Cover Side

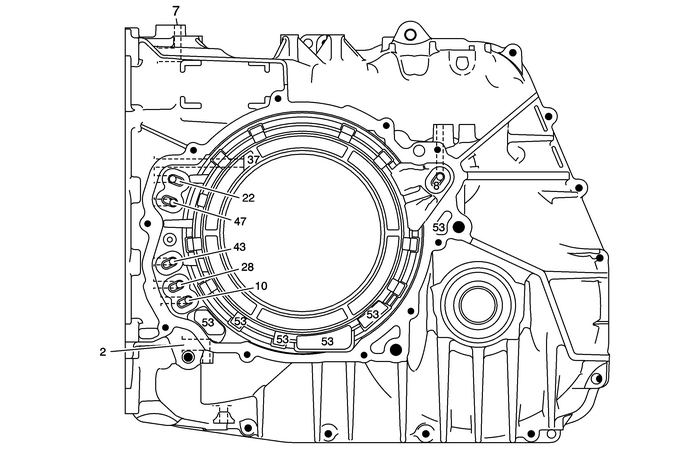

A/Trans Case Assembly Case Cover Side Automatic Transmission Unit

(2)Line (to valve body)
(7)Cooler Feed
(8)Lube
(10)Compensator Feed
(22)R1
(28)35 Reverse Clutch
(37)1234 Clutch
(43)26 Clutch
(47)456 Clutch
(53)Void
Drive Range, Sixth Gear (Gen 2/Hybrid) Automatic Transmission Unit
As vehicle speed increases, the transmission control module(TCM) processes input signals from the automatic transmission inputand output speed sensors, the throttle position sensor and othervehicle se ...

A/Trans Case Assembly - Control Valve Body Side Automatic Transmission Unit
A/Trans Case Assembly– Control Valve Body Side(2)Line(3)Decrease(5)TCC Release(6)TCC Apply(7)Cooler Feed(10)Compensator Feed(22)R1(28)35 Reverse Clutch(37)1234 Clutch(43)26 Clutch(47)456 Clutch(53)V ...
