3-5-Reverse and 4-5-6 Clutch Housing Installation Automatic Transmission Unit

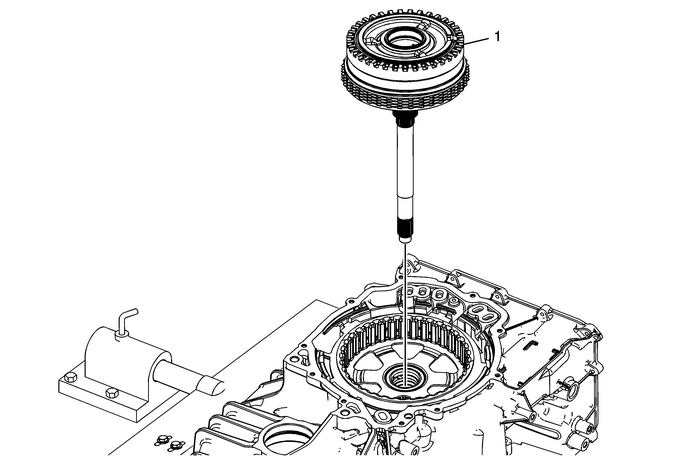

3-5-Reverse and 4-5-6 Clutch Housing Installation

Callout

Component Name

1	3–5 Reverse and 4–5–6 Clutch Assembly Note:Rotate the assembly back and forth to align the 3–5 reverse clutch plates with thereaction sun gear housing.

3-5-Reverse and 4-5-6 Clutch Housing, and Input, Reaction, and Output Carrier Installation Automatic Transmission Unit

3-5-Reverse and 4-5-6 Clutch Housing, and Input, Reaction, and Output Carrier InstallationCalloutComponent Name13–5 Reverse and 4–5–6 Clutch Housing Thrust Bearing22–6 Clutch Apply Plate (Wave ...
