Chevrolet Equinox Owners Manual: Turn and Lane-Change Signals

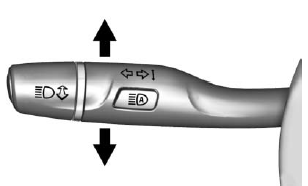

Move the lever all the way up or down to signal a turn.
An arrow on the instrument cluster will flash in the direction of the turn or lane change.
Raise or lower the lever until the arrow starts to flash to signal a lane change. Hold it there until the lane change is complete. If the lever is moved momentarily to the lane change position, the arrow will flash three times.
The lever returns to its starting position when it is released.
If after signaling a turn or lane change, the arrow flashes rapidly or does not come on, a signal bulb may be burned out.
Have any burned out bulbs replaced. If a bulb is not burned out, check the fuse. See Instrument Panel Fuse Block.
Hazard Warning Flashers
: Press to make the front and
rear turn signal lamps flash on and
off. This warns others that you are
having trouble.
Press again to turn the
flashers off. ...
Fog Lamps
The fog lamps button is on the
instrument panel to left of the
steering wheel.
To turn on the fog lamps, the ignition
and the headlamps or parking lamps
must be on.
: If equipped, press t ...
