Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Installation (6T40/45) Automatic Transmission Unit

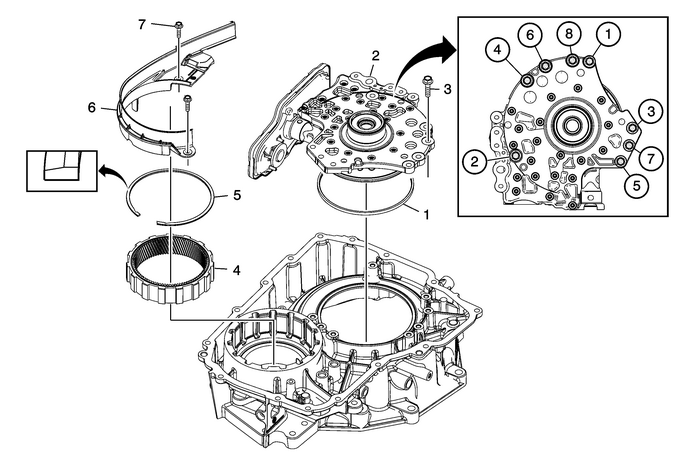

Transmission Fluid Pump, Front Differential Carrier Baffle, and Front DifferentialRing Gear Installation

Callout

Component Name

1

Torque Converter and Differential Housing Seal

2

Fluid Pump Assembly

3

Fluid Pump Bolts-M8-x-33-(Qty:-8)

Caution:Refer toFastener Caution.

Tighten

10-Y (89-lb-in) then rotate the bolt an additional 45-degrees

Special Tool

EN-45059 Angle Meter or equivalent

For equivalent regional tools, refer toSpecial Tools.

4

Front Differential Ring Gear

5

Front Differential Ring Gear Retainer

Note:Install the retainer with the taper facing away from the ring gear.

6

Front Differential Carrier Baffle

7

Front Differential Carrier Baffle Bolts-M6-x-25-(Qty:-2)

Tighten

12-Y (106.21-lb-in)
