Torque Converter Removal Automatic Transmission Unit

Torque Converter Removal

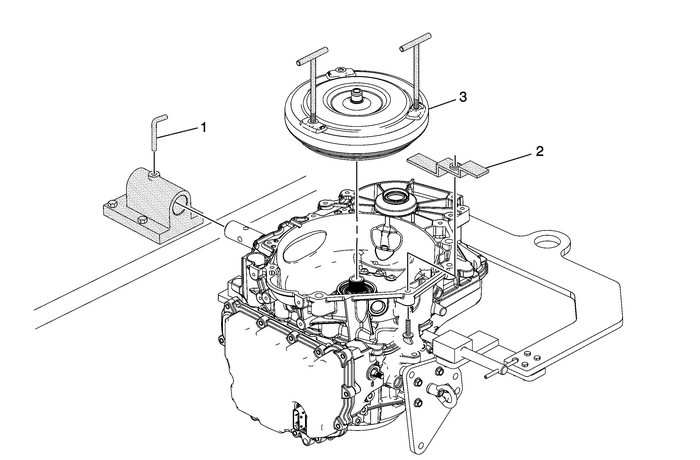

Callout

Component Name

1

Lock Pin

Warning:Lock pin must be secured into the bench fixture to hold thetransmission and prevent bodily injury.

Note:Ensure the DT-3289-20 holding fixture is mounted to a bench that is properly supported and will support the weight of thetransmission assembly without tipping. DT-39890 holding fixture adapter and an engine stand can be used as an alternative method for supporting the transmissionassembly during repairs.

Special ToolsDT-3289-20 Holding FixtureDT-39890 Transmission Holding Fixture Adapter

For equivalent regional tools, refer toSpecial Tools.

2

DT-21366 Torque Converter Holding Strap

3

Torque Converter Assembly

Caution:Only install the lift assist handles until it stops. Do nottighten. Over tightening the lift assist handles can cause damageto the torque converter.

Note:Failure to raise the torque converter straight up could damage the torque converterclutch lip seal inside the torque converter clutch assembly.

Special Tool

DT-46409 Torque Converter Lifting Handles

For equivalent regional tools, refer toSpecial Tools.

Torque Converter Installation Automatic Transmission Unit
Torque Converter InstallationCalloutComponent Name1Torque Converter AssemblyNote:Failure to lower the torque converter straight down could damage the torque converterclutch lip seal inside the torque ...

Torque Converter Removal Automatic Transmission Unit
Torque Converter RemovalCalloutComponent Name1Lock PinWarning:Lock pin must be secured into the bench fixture to hold thetransmission and prevent bodily injury.Note:Ensure the DT 3289-20 holding fixtu ...
