Three-Way Catalytic Converter Replacement (LFX) Emissions Catalytic Converter

Three-Way Catalytic Converter Replacement

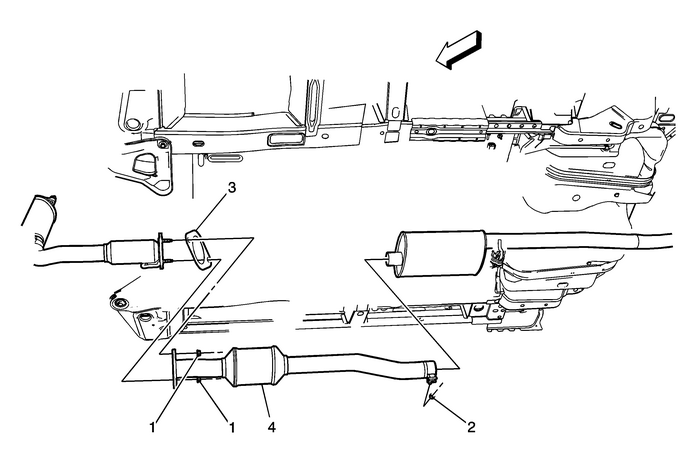

Callout

Component Name

Preliminary Procedure Raise and support the vehicle.Refer toLifting and Jacking the Vehicle
1	Nut (Qty:-2). Warning:Refer toHot Exhaust System Warning. Caution:Refer toFastener Caution. Tighten 50-Y(37-lb-ft).
2	Nut Tighten 20-Y(15-lb-ft).
3	Gasket Tip:Replace with a NEW gasket.
4	3–Way Catalytic Converter
