Chevrolet Equinox Owners Manual: Storing the Tire Sealant and Compressor Kit

Chevrolet Equinox Owners Manual / Vehicle Care / Wheels and Tires / Storing the Tire Sealant and Compressor Kit

The tire sealant and compressor kit is in a bag in the rear compartment storage area.

Open the liftgate. See Liftgate.
Fold the rear part of the load floor to the front.

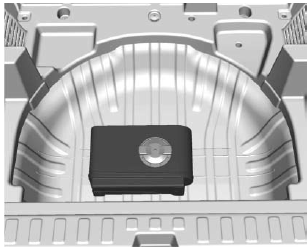

Storing the Tire Sealant and Compressor Kit

Turn the retainer nut counterclockwise to remove the tire sealant and compressor kit bag.
Remove the tire sealant and compressor kit from the bag.

To store the tire sealant and compressor kit, reverse the steps.

Using the Tire Sealant and Compressor Kit without Sealant to Inflate a Tire (Not Punctured)

The kit includes: Sealant Canister Inlet Valve Sealant/Air Hose Base of Sealant Canister Tire Sealant Canister On/Off Button Slot on Top of Compressor Press ...
