Chevrolet Equinox Service Manual: Special Tools

Illustration

Tool Number/ Description

Special Tools

BO-24402-A

J-24402-A

Glass Sealant Cold Knife Remover

Special Tools

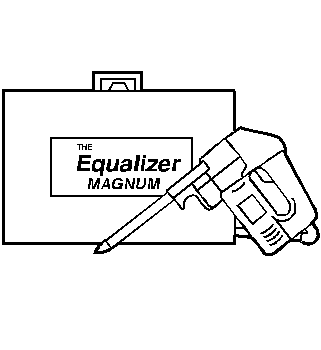

equalizermagnum

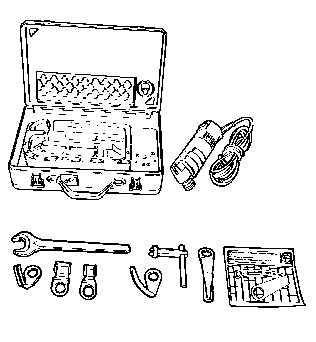

BO-39032

J-39032

Stationary Glass Removal Tool

Special Tools

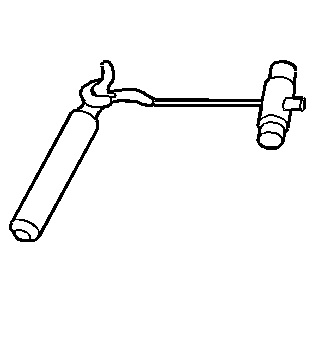

BO-39040

J-39040

Quarter Window Remover

Urethane Adhesive Description
For replacement of any adhesive-installed window, use the full cut method only.Use an adhesive that is approved by GM, Specification GMW-15672.Use these materials based on specific manufacturer. Do NO ...

Full-Cut Method Description
Important:If corrosion of the pinch-weld flange is present, or if sheetmetal repairs or replacements are required, refinish the pinch-weldflange in order to present a clean, primer-only surface.If pai ...
