Chevrolet Equinox Service Manual: Special Tools

Chevrolet Equinox Service Manual / Vehicle - General / Special Tools

Illustration

Tool Number/ Description

Special Tools

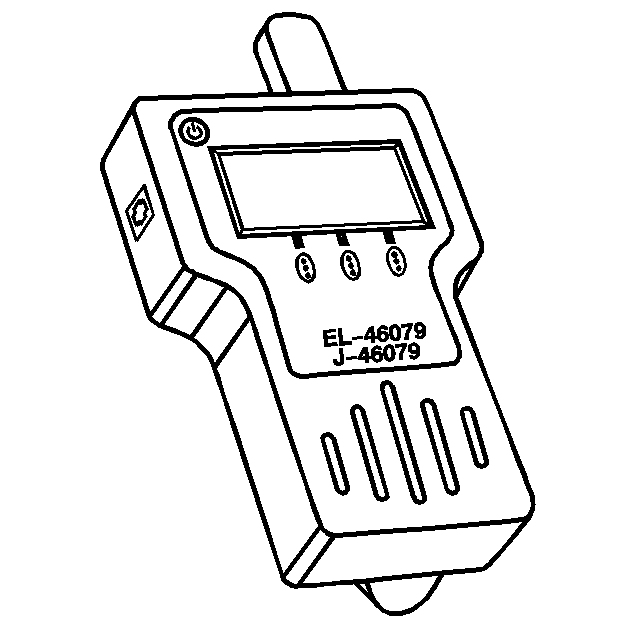

EL-46079

J-46079

Tire Pressure Monitor Diagnostic Tool

Special Tools

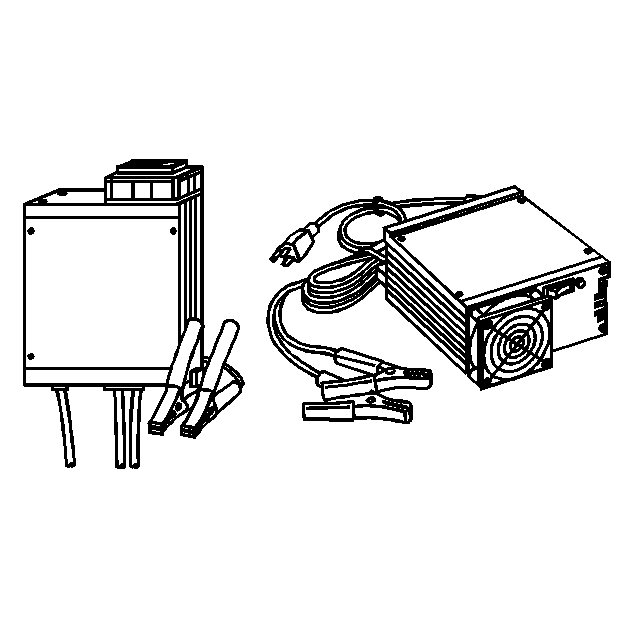

EL-49642

EL-50113

Europe– Use recommended equivalent workshopequipment

SPS Programming Support Tool
