Secondary Timing Chain Guide Installation - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain

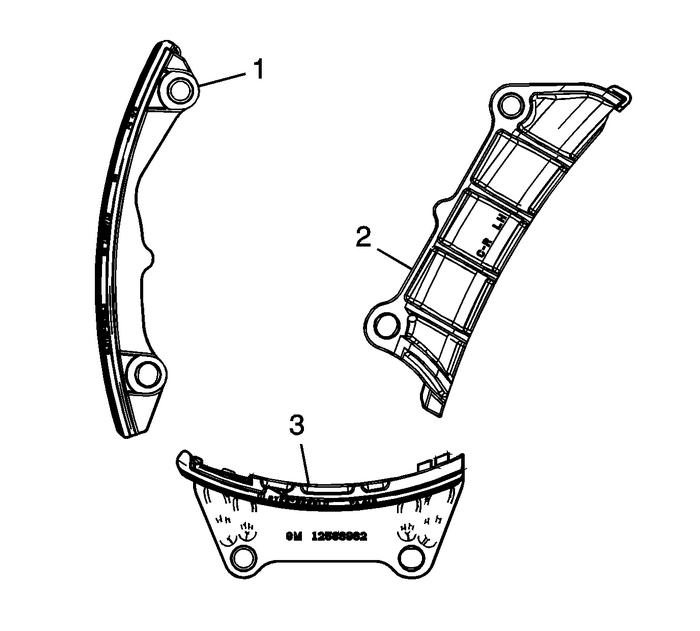

Ensure that the right secondary camshaft drive chainguide-(1) is being installed.

Secondary Timing Chain Guide Installation - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain

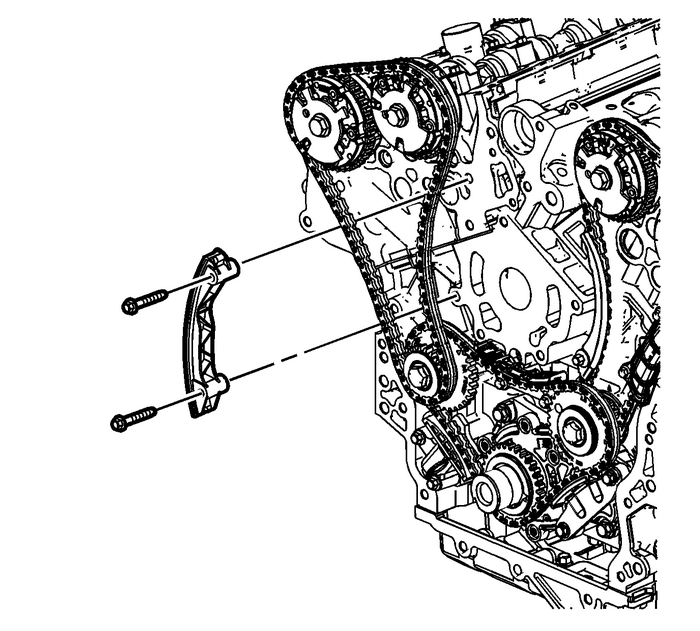

Position the right secondary camshaft drive chainguide.

Caution:Refer toFastener Caution.

Install the secondary camshaft drive chain guide bolts andtighten to25-Y(18-lb-ft).
Timing Chain Idler Sprocket Installation - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain
Ensure that the right camshaft intermediate drive chainidler-(1) is being installed. The recessedhub-(4) and the smaller sprocket of the right camshaftintermediate drive chain idler is installed outwa ...

Secondary Camshaft Drive Chain Shoe Installation - Right Side Valvetrain Camshaft
Ensure that the right secondary camshaft drive chainshoe-(1) is being installed.Position the right secondary camshaft drive chainshoe.Caution:Refer toFastener Caution.Install the secondary camshaft dr ...
