Rear Side Door Weatherstrip Replacement Panels

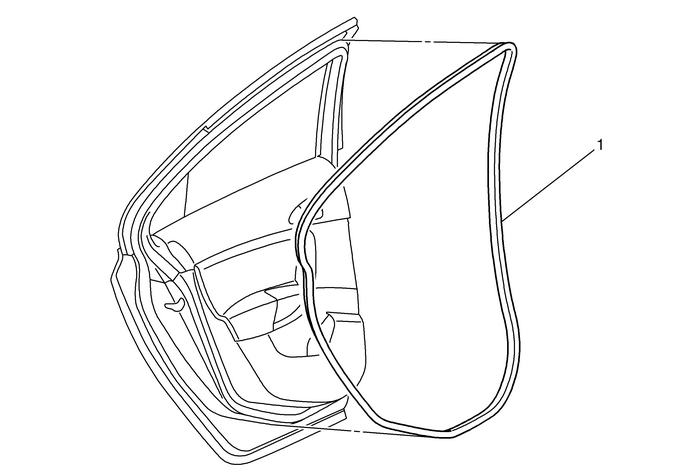

Rear Side Door Weatherstrip Replacement

Callout

Component Name

Preliminary Procedures

Remove the rear side door check link. Refer toFront Side Door Check Link Replacement.

1

Rear Side Door Weatherstrip

Procedure

Use a suitable tool in the removal of the rear side doorweatherstrip retainers.
